$1,699.00
If you purchase online, in stock bikes should be ready for pickup in store in 3-5 working days, if we special order it should be ready is 12-15 working days. Call to see what's currently in stock!

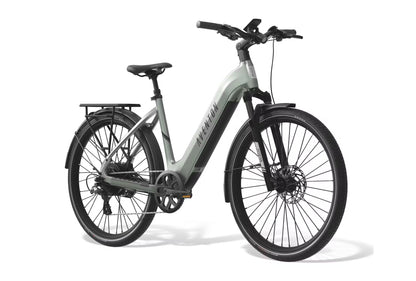

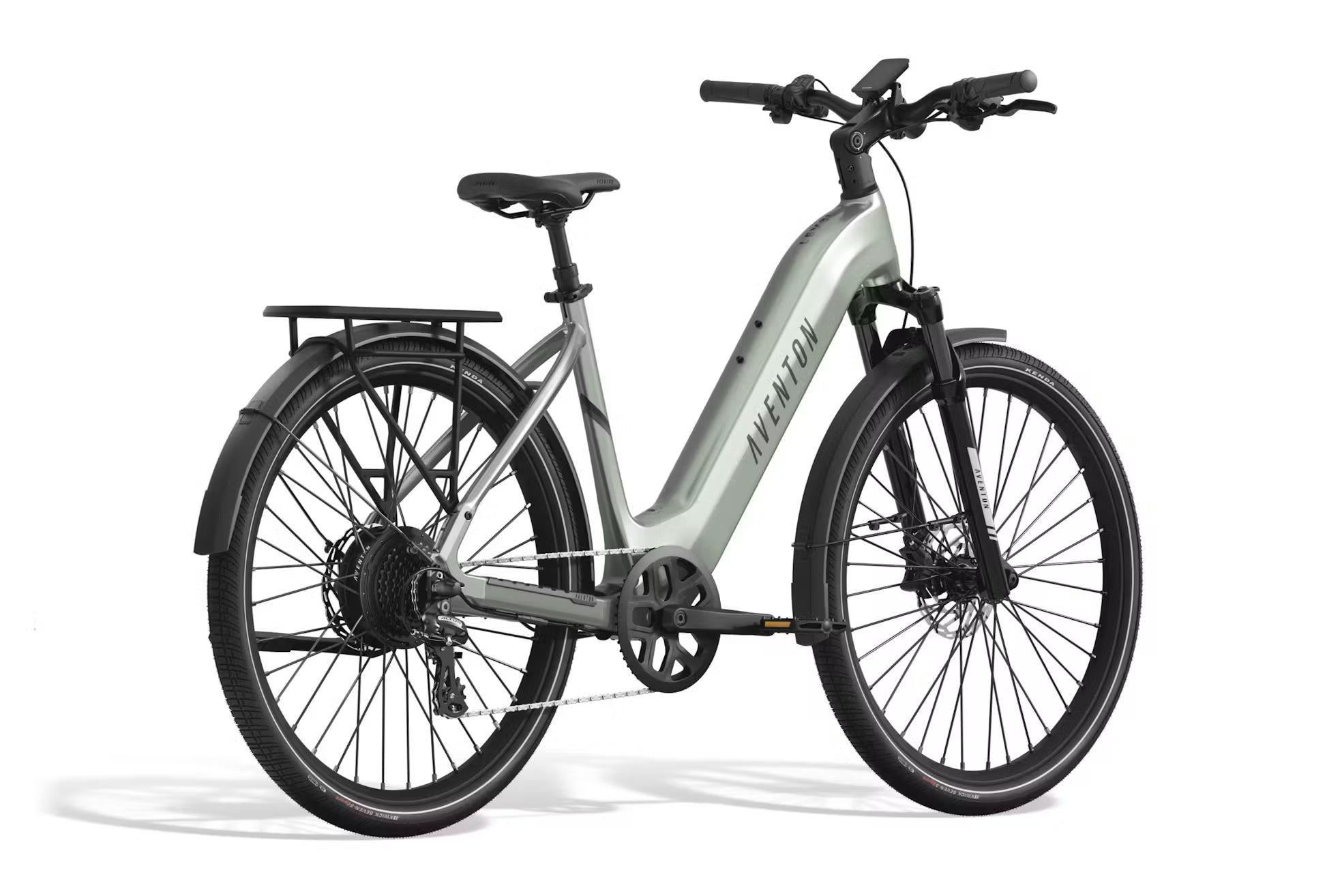

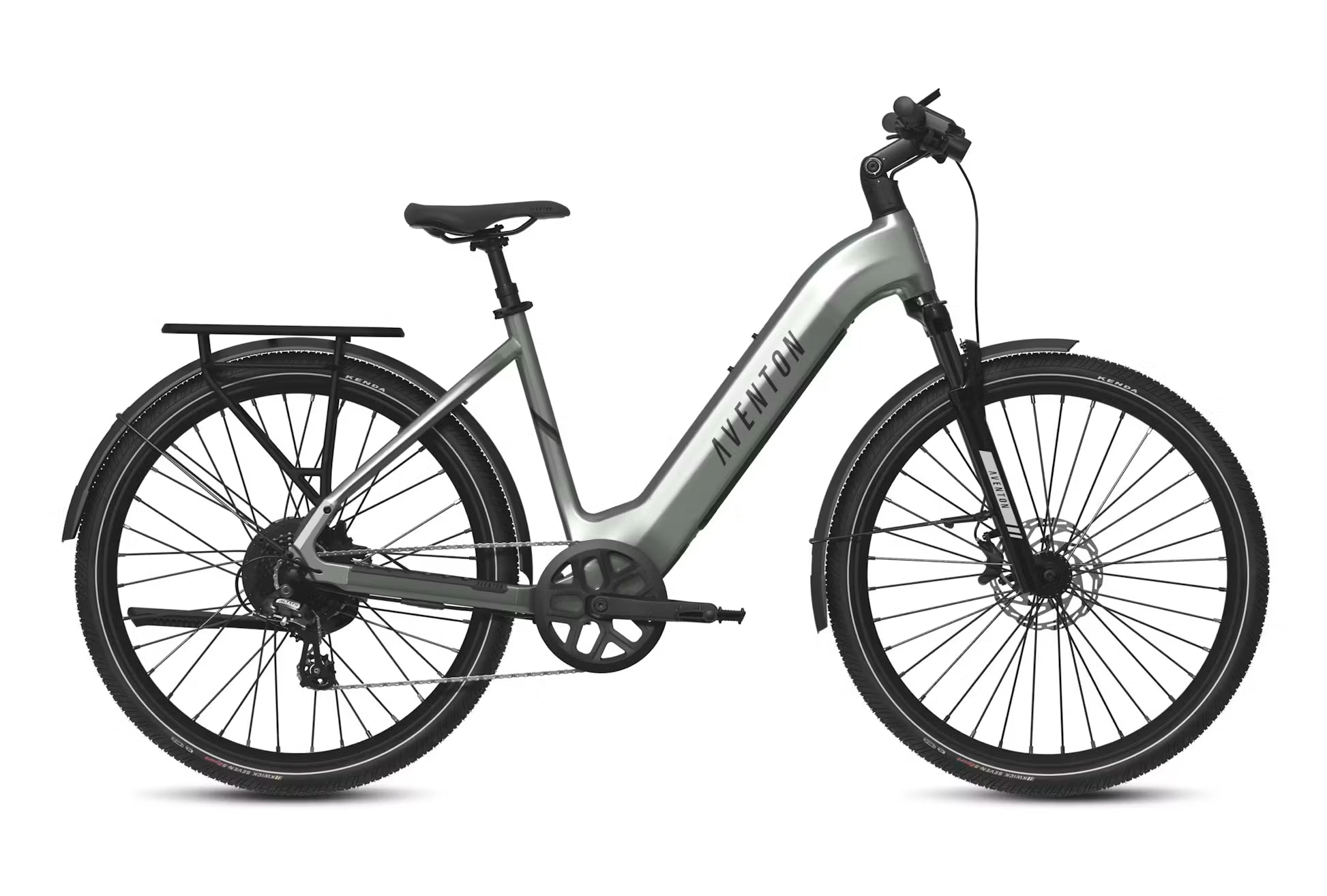

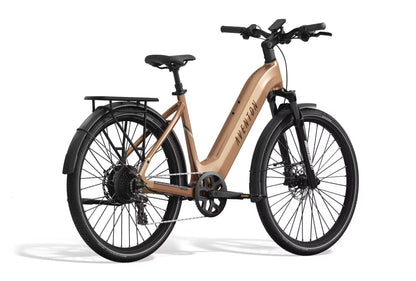

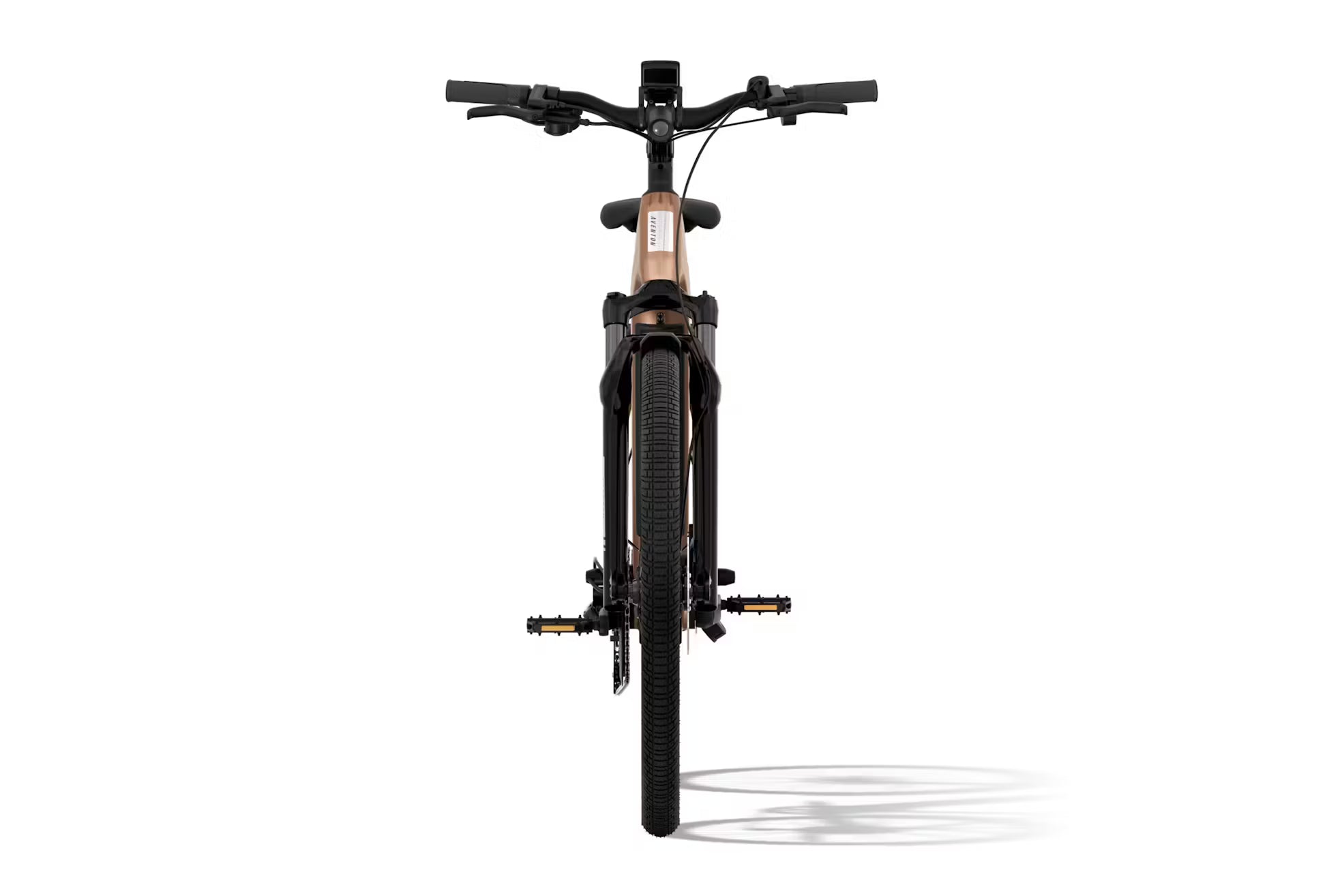

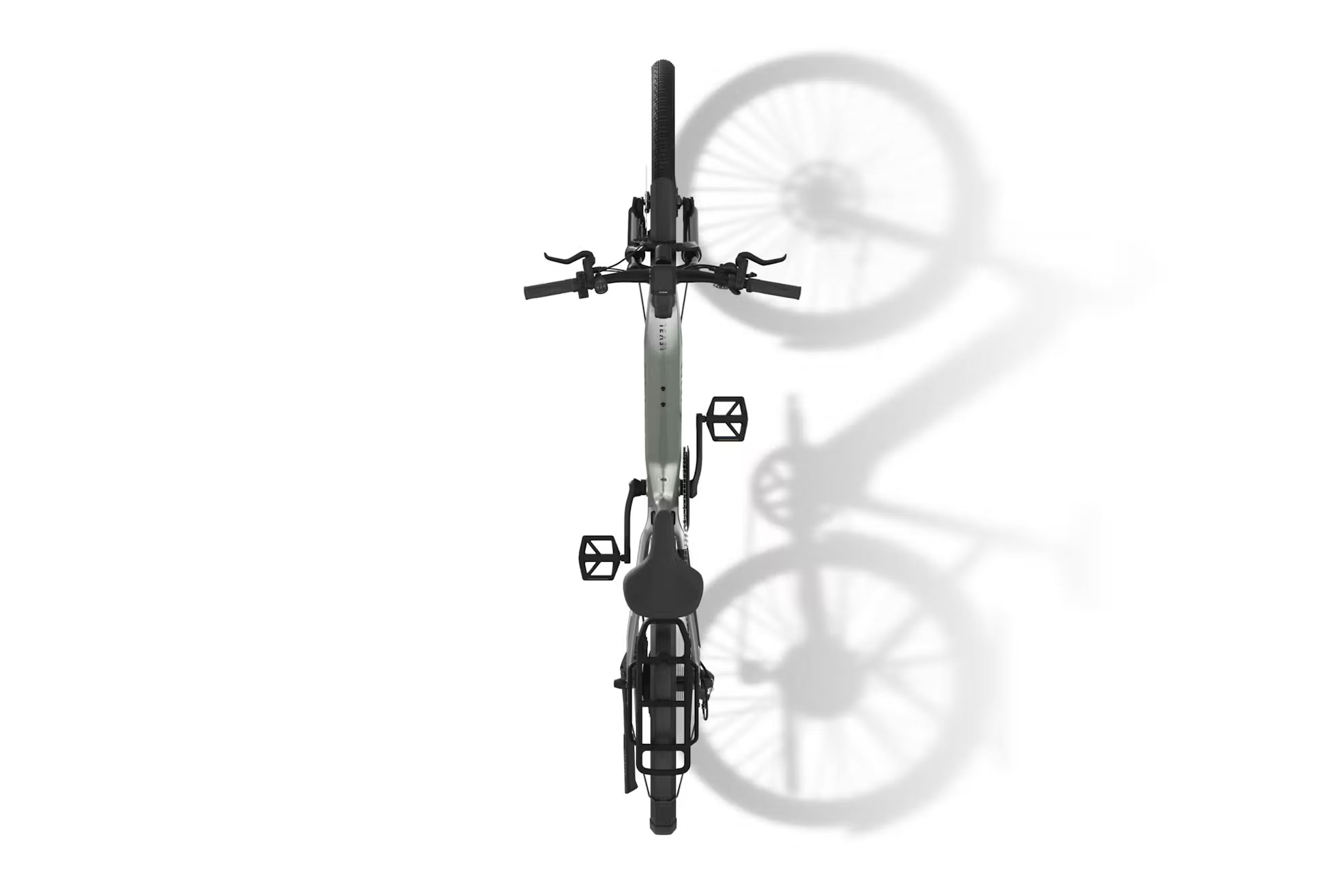

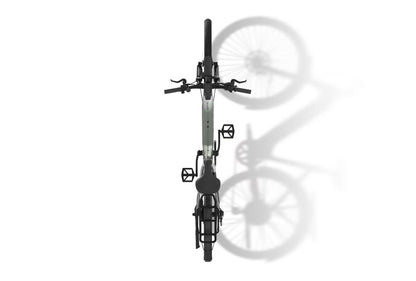

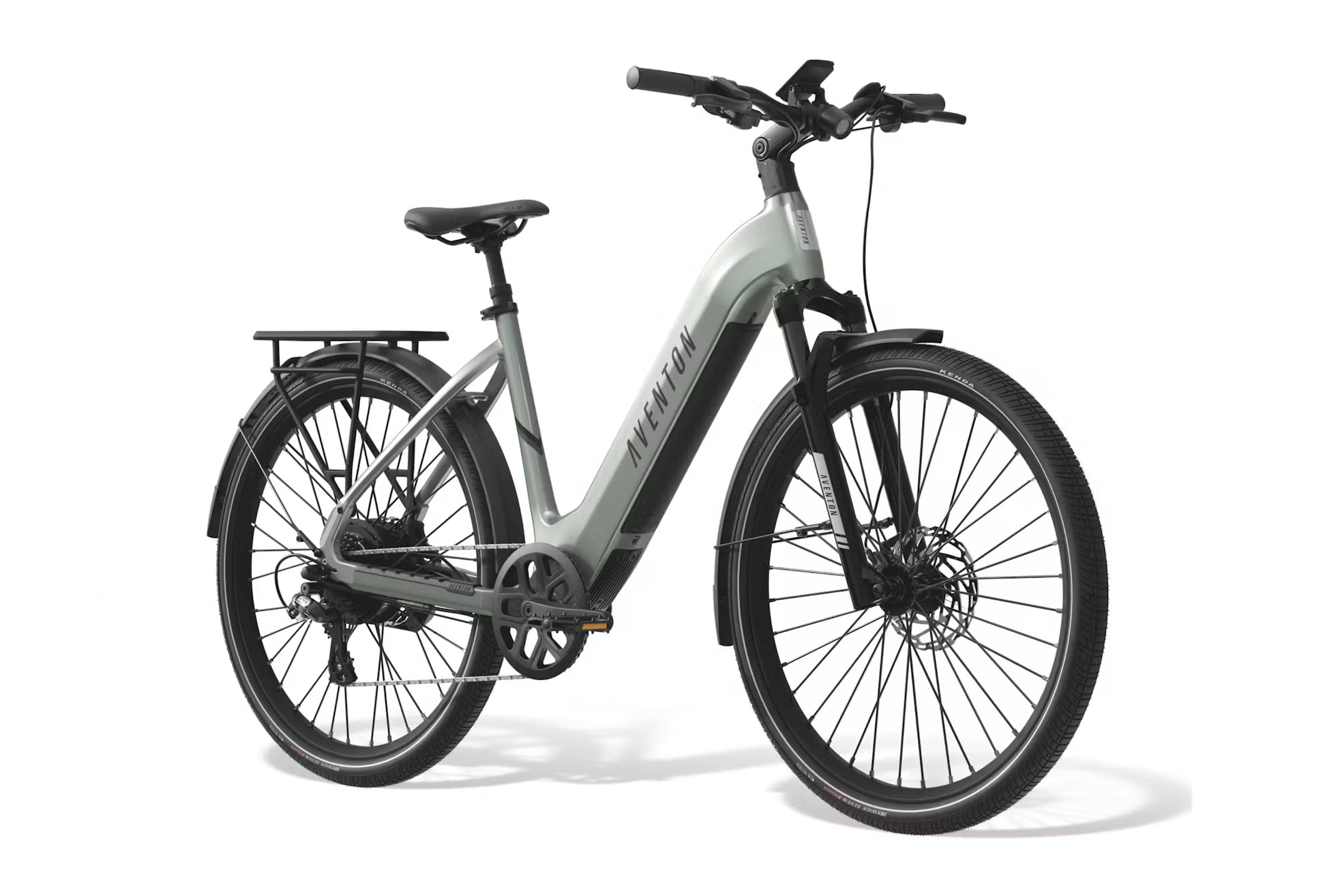

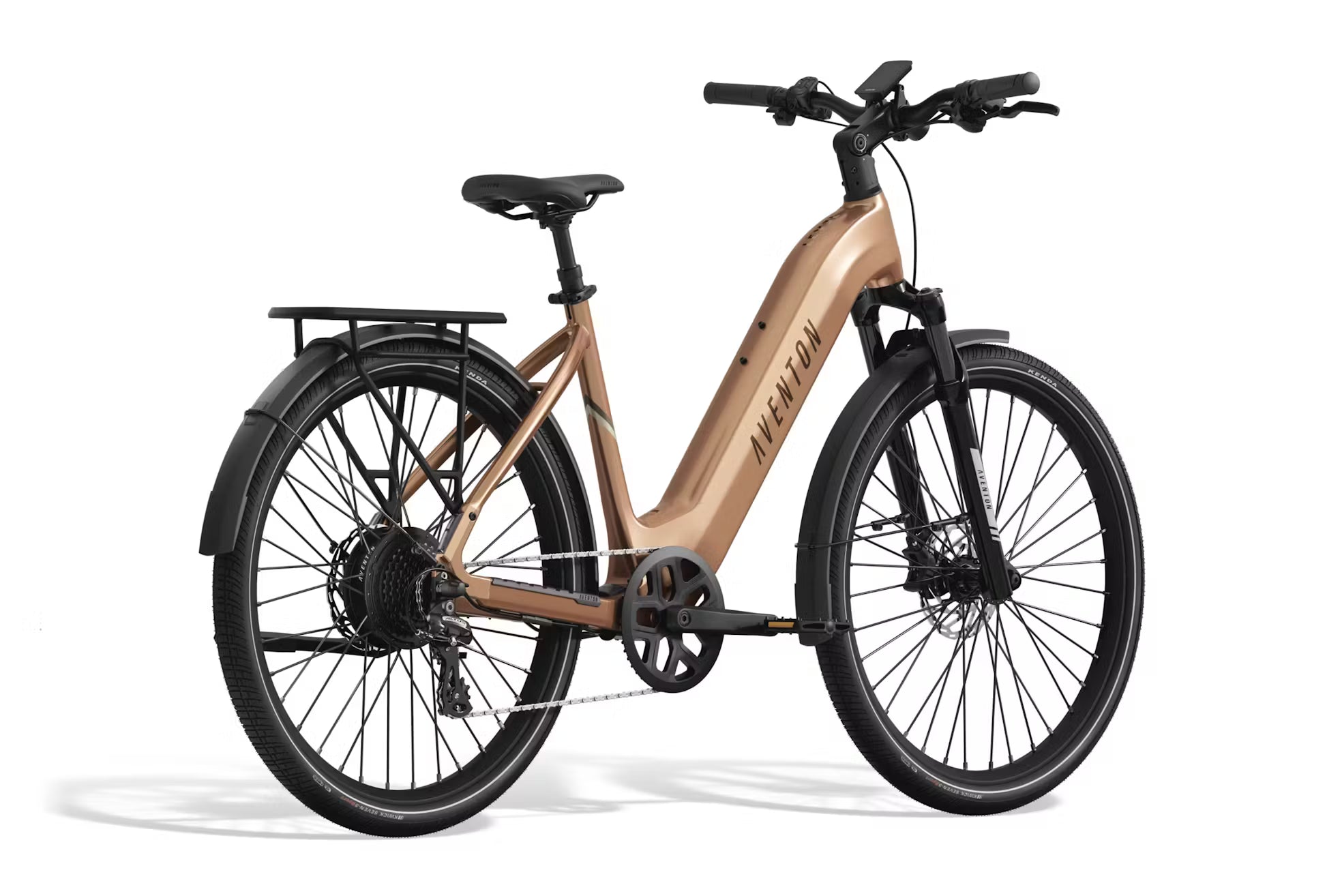

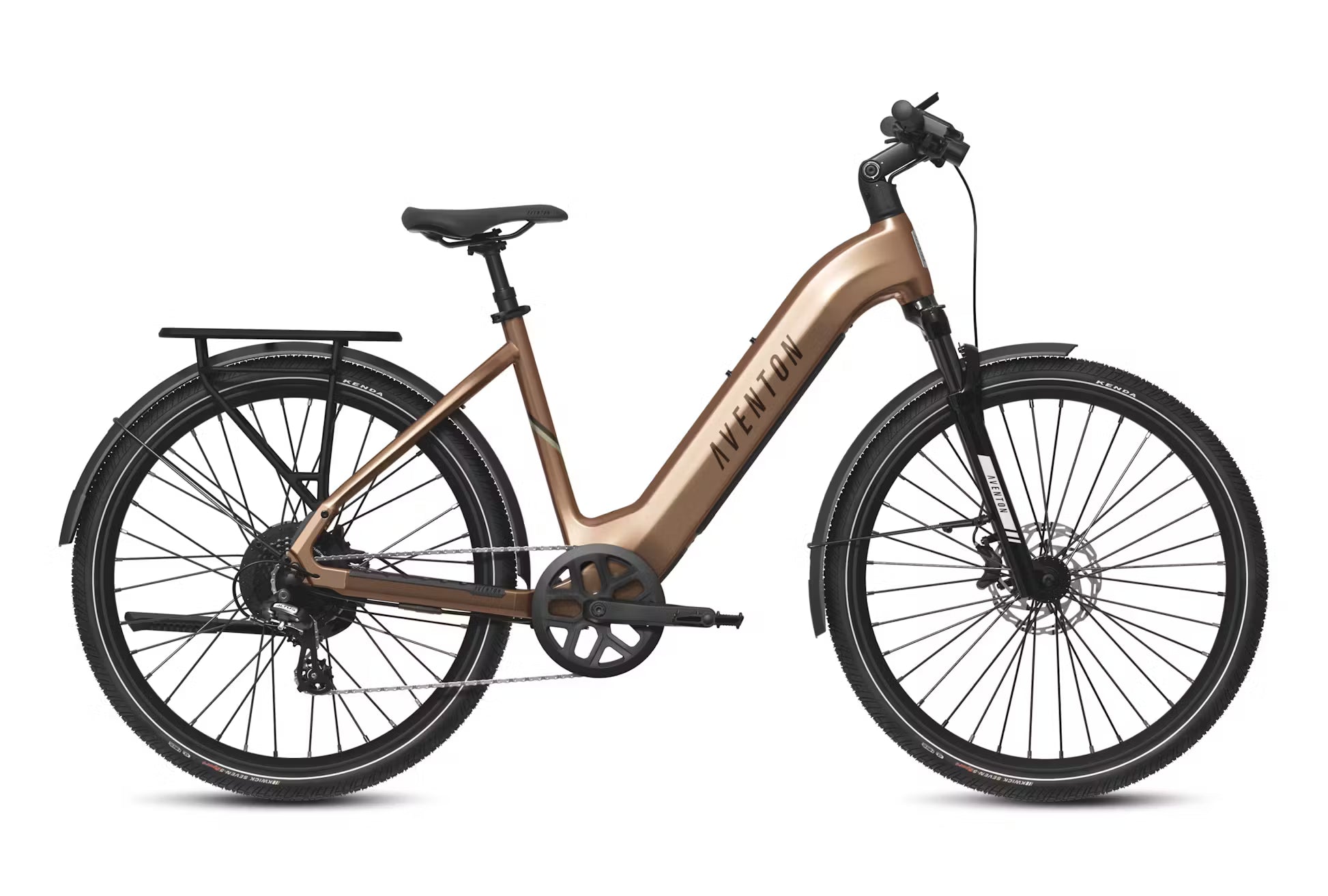

Fully equipped with a rear rack and fenders, a front suspension fork and suspension seat post. New ACU technology has GPS tracking, auto-lock, unusual movement detection, alarm system, and more. Adjustable stem included. 500 Watt motor, 708 Wh battery and 70 miles of range.
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
Â
| Model | Level 3 Ebike |
|---|---|
| Weight | 67lbs |
| Total Weight Limit | 300 lbs |
| Box Size | 61"x13"x34" |
| Rider Height | 5'3" - 6'4" |
| Ebike Class | Class 2 Ebike |
| Range | Up to 70 Miles |
| Battery Safety Certifications | Certified to UL 2271 |
| Safety Certifications | |
| UL Safety Certified | UL 2849 |
| Ideal Use | Commuting |
| Pedal Assist | 3 Levels (with Ride Tune Customization) |
| Water Resistance | Bike - IPX5 // Components - IPX6 |
| Frameset | |
| Frame | 6061 Aluminum, Gravity Cast Front Triangle |
| Fork | Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset |
| Rear Spacing | 142mm |
| Fork Spacing | 110mm |
| Frame Style | Step-Thru |
| Wheelset | |
| Front Wheel | 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black |
| Rear Wheel | 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black |
| Tires | Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 |
| Ebike System | |
| Motor | 36V, 500W (sustained), 864W (peak) |
| Motor Torque | |
| Display | Aventon BC280 |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
| Battery Weight | 8.7lbs |
| Controller | 36V, 24A |
| Throttle | Aventon LH Handlebar Mounted |
| Sensors | Double Sided Bottom Bracket Torque Sensor |
| Charger | 36V Output: 42V/ 4A |
| Charging time from 0% to 100% | 5 hours |
| Lights | Front and rear lights integrated |
| Speed | Class 2 |
| Brakes | |
| Front Brake | Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Rear Brake | Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Front Brake Rotor | Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor |
| Rear Brake Rotor | Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor |
| Drivetrain | |
| Rear Derailleur | Shimano Altus RD-M310 |
| Shifter | Shimano 8 Speed Trigger SL-M315-8R |
| Chain | 7/8 speed 120L |
| Cassette | 12-32T / 8 Speed Shimano CS HG200-8 |
| Chainring | 48T |
| Crankset | 3pc, 170mm crank arm |
| Bottom Bracket | Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm |
| Pedals | 9/16" Composite Platform |
| Cockpit | |
| Saddle | Aventon Saddle |
| Seatpost | 30.9mm Aventon Suspension Seatpost with 50mm travel |
| Seatpost Clamp | 34.9mm |
| Handlebars | Aluminum 31.8mm, 680mm |
| Grips | Aventon Lock on grips |
| Headset | Sealed Bearing Headset |
| Included Accessories | |
| Fenders | Included |
| Rear Rack | Included |
| Rear Rack Weight Limit | 60lbs |
With the Aventon ACU techonogy on all thier latest models, Aventon has added security features like GPS tracking, unusual activity detection, rear wheel / kickstand lock, and much more. Aventon bikes give you peace of mind knowing your bike is always secure so you can focus solely on the fun ahead.
Cool Tech
The Aventon Control Unit (ACU) is a powerful onboard technology that sets a new standard for what you can expect from your ebike. With a variety of exciting features and capabilities, the ACU seamlessly integrates technology to offer more control and peace of mind.The development of ACU is the result of years of research, feedback from riders, and a passion for creating smarter, more intuitive solutions. It’s a leap forward in how we ride, protect, and maximize the ability of our bikes. Welcome to the era of Smart Bike.
Keyless Battery - A keyless battery system eliminates the need to keep track of one more set of keys in your life. Batteries can be removed via the bike display or through the Aventon app.
Geofencing - Geofencing gives riders ultimate control over where their bike is ridden, or not ridden. Through the Aventon app, riders can create allowable and restricted zones for their bike. The ACU will eliminate throttle and pedal assist power as soon as the bike enters a restricted area or leaves an allowable area.
4G Connection - 4G Connectivity provides riders with the ability to control their bike and its functionality remotely, from wherever they may be.
Lock it Down
Startup Password - Riders can create a password that must be entered on the display in order to operate the bike.I
Integrated Bike Lock - Easily engage the integrated lock through the bike display or Aventon app for added peace of mind that your bike is secure.
Unusual Activity Detection - The ACU is able to detect unusual activity and alert riders if their bike is moved without authorization. Riders can opt to activate an onboard alarm when their bike is moved, as well as receive notifications of unusual activity through the Aventon app.
