$1,699.00
If you purchase online, in stock bikes should be ready for pickup in store in 3-5 working days, if we special order it should be ready is 12-15 working days. Call to see what's currently in stock!

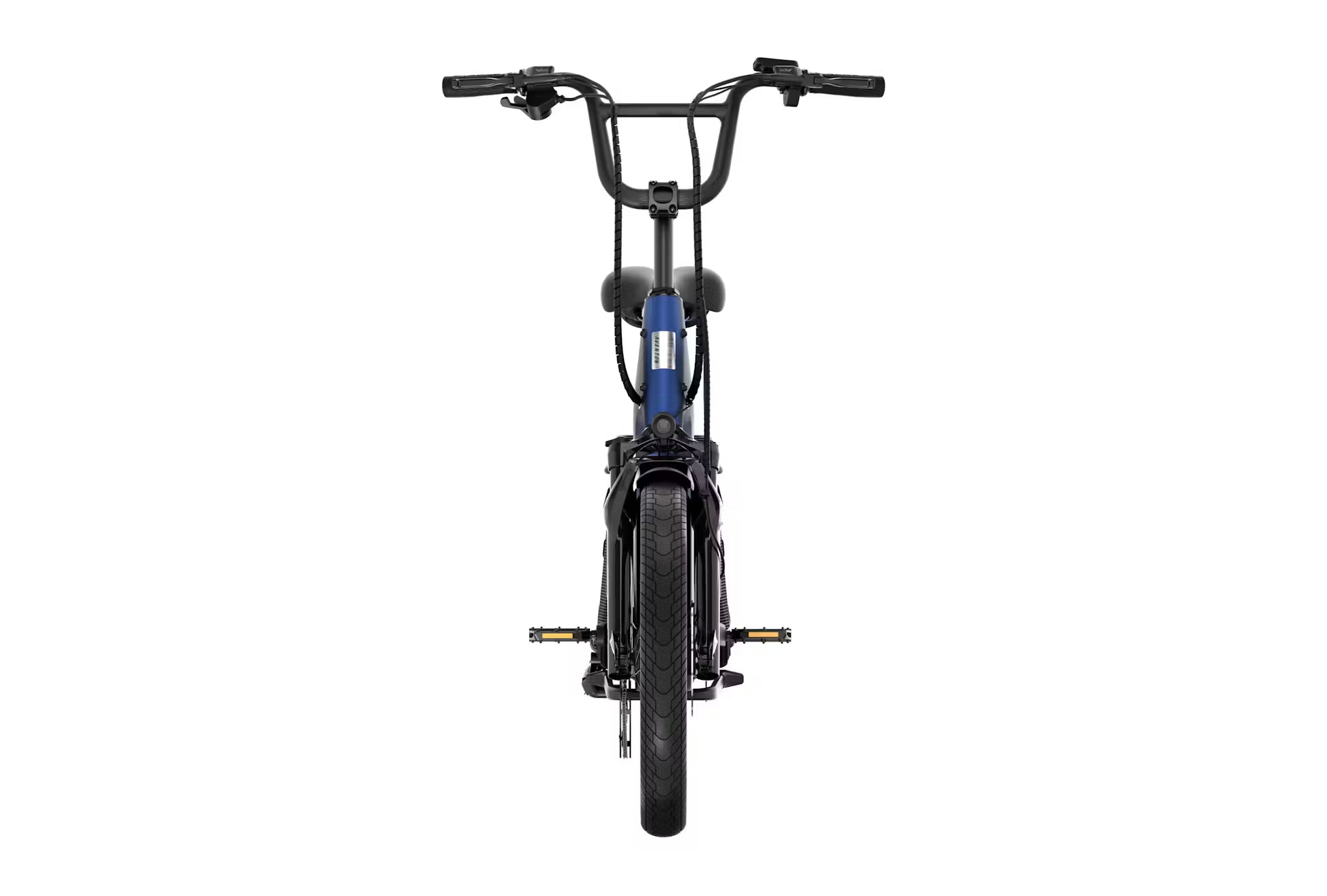

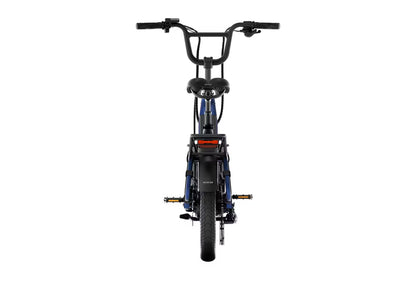

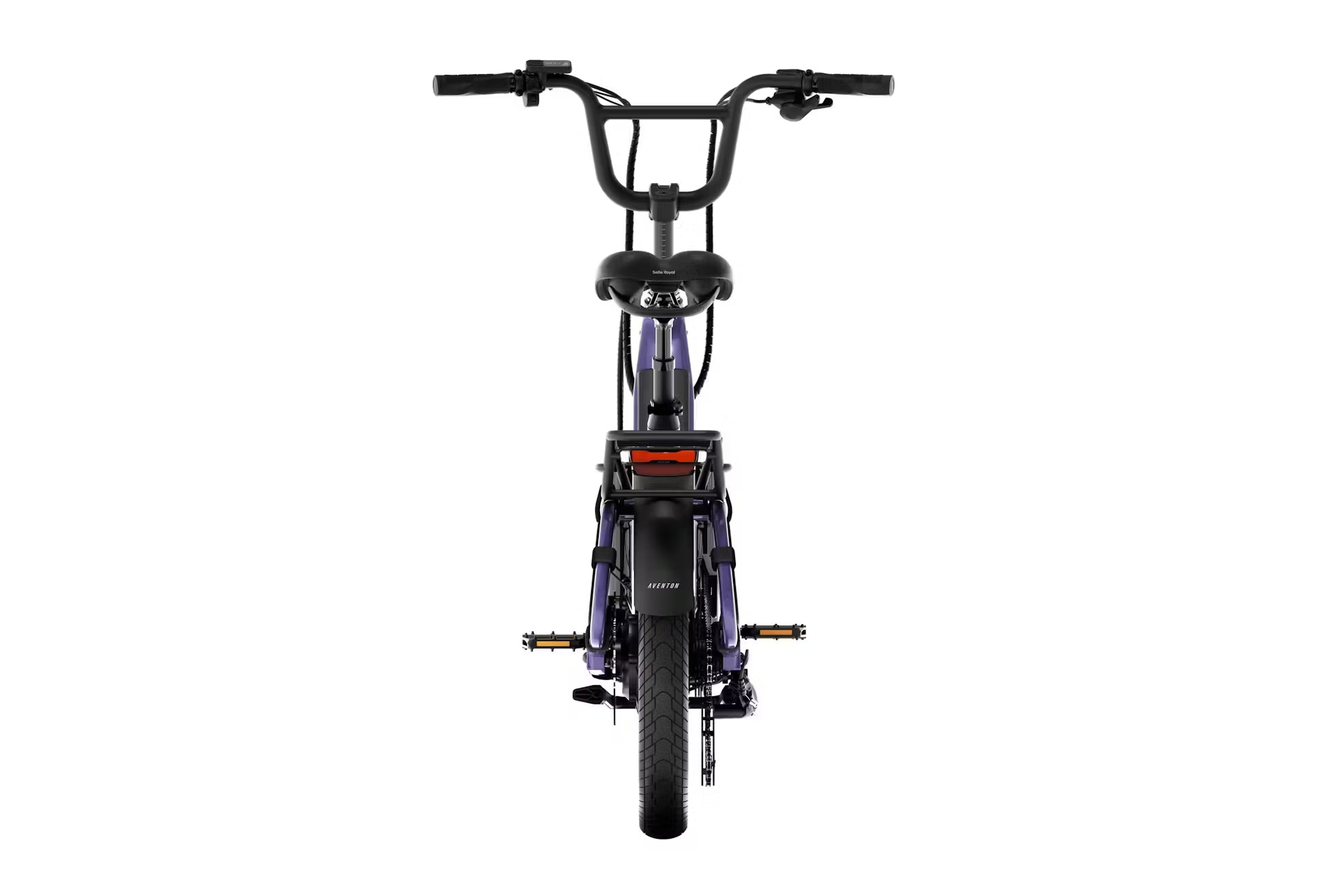

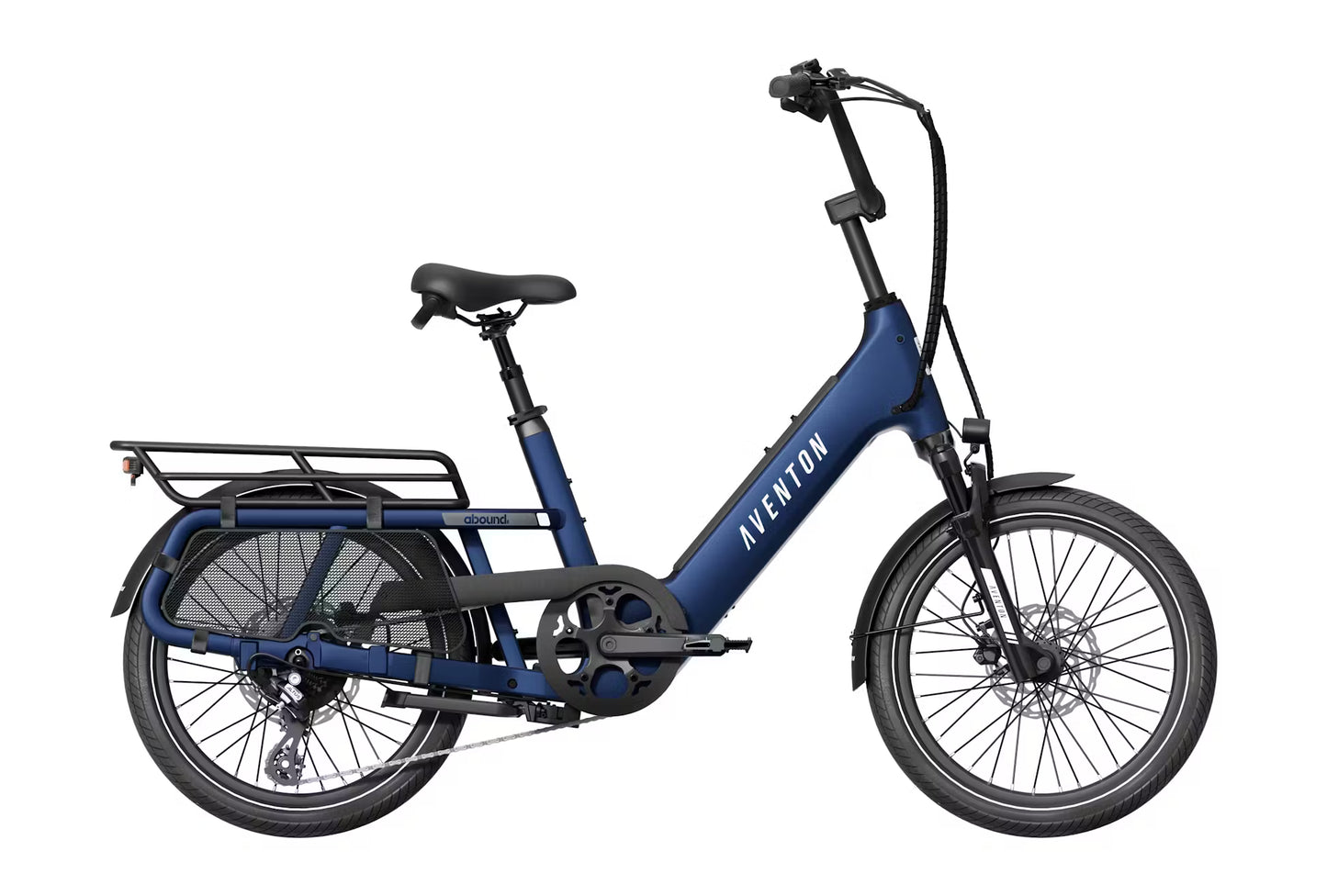

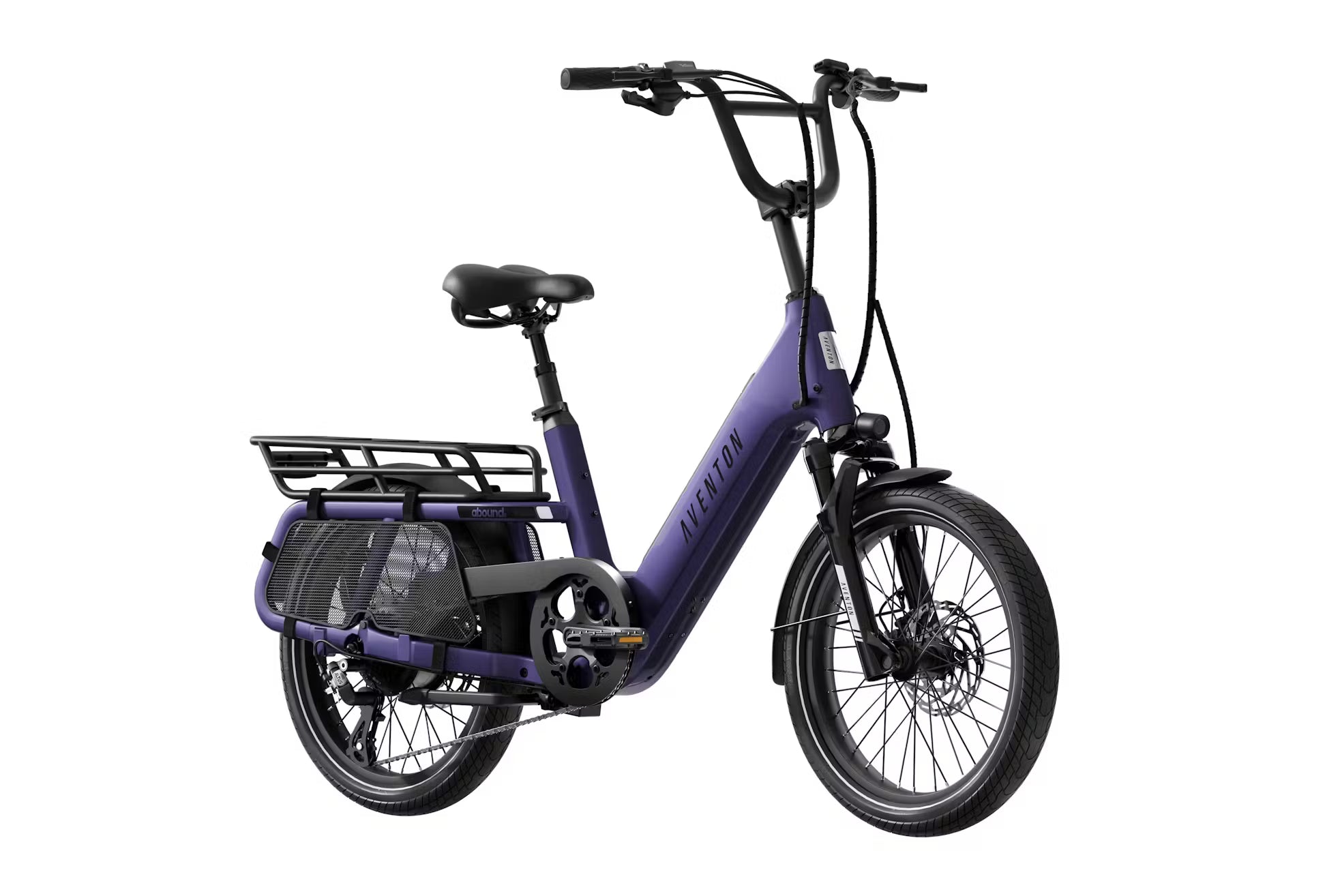

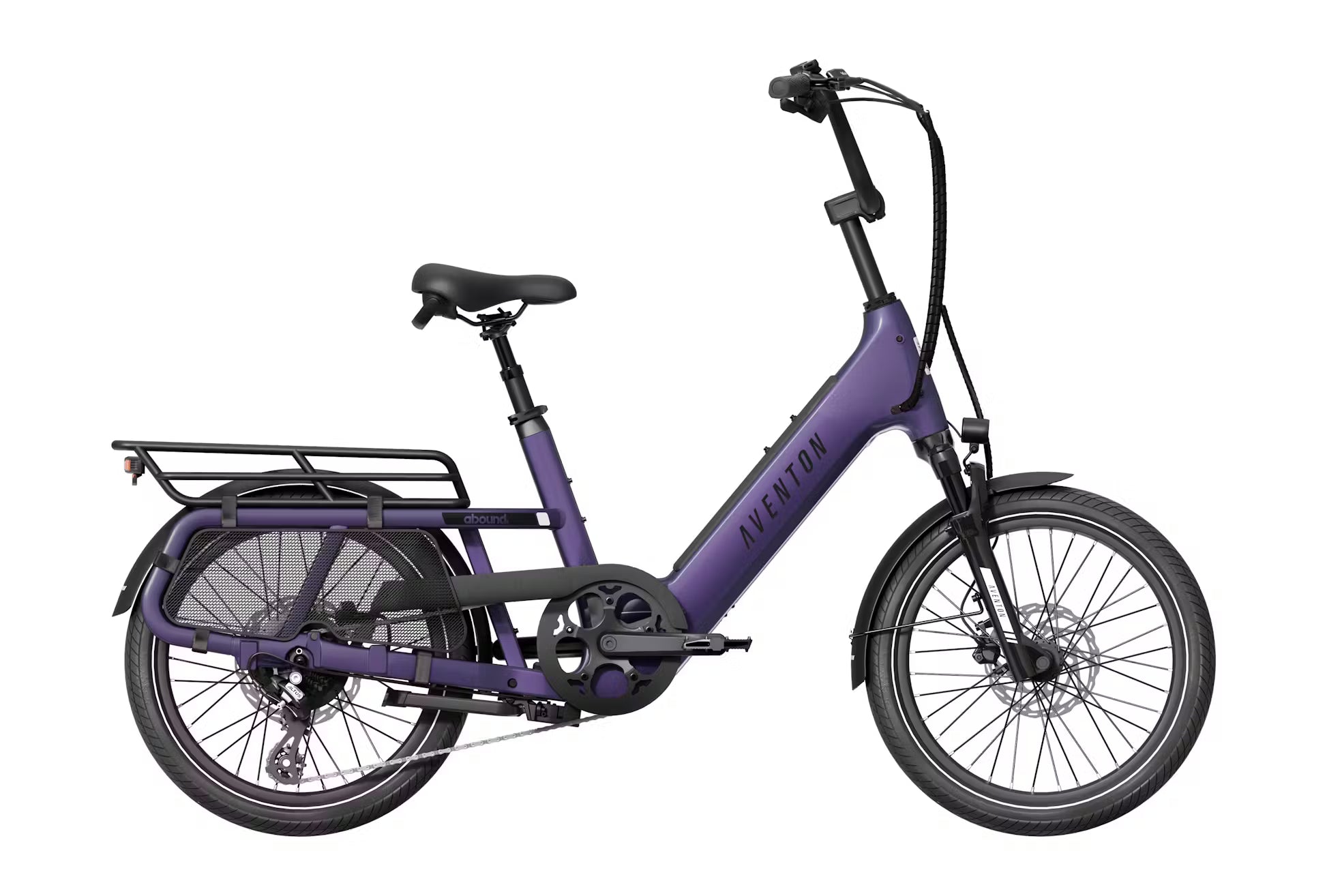

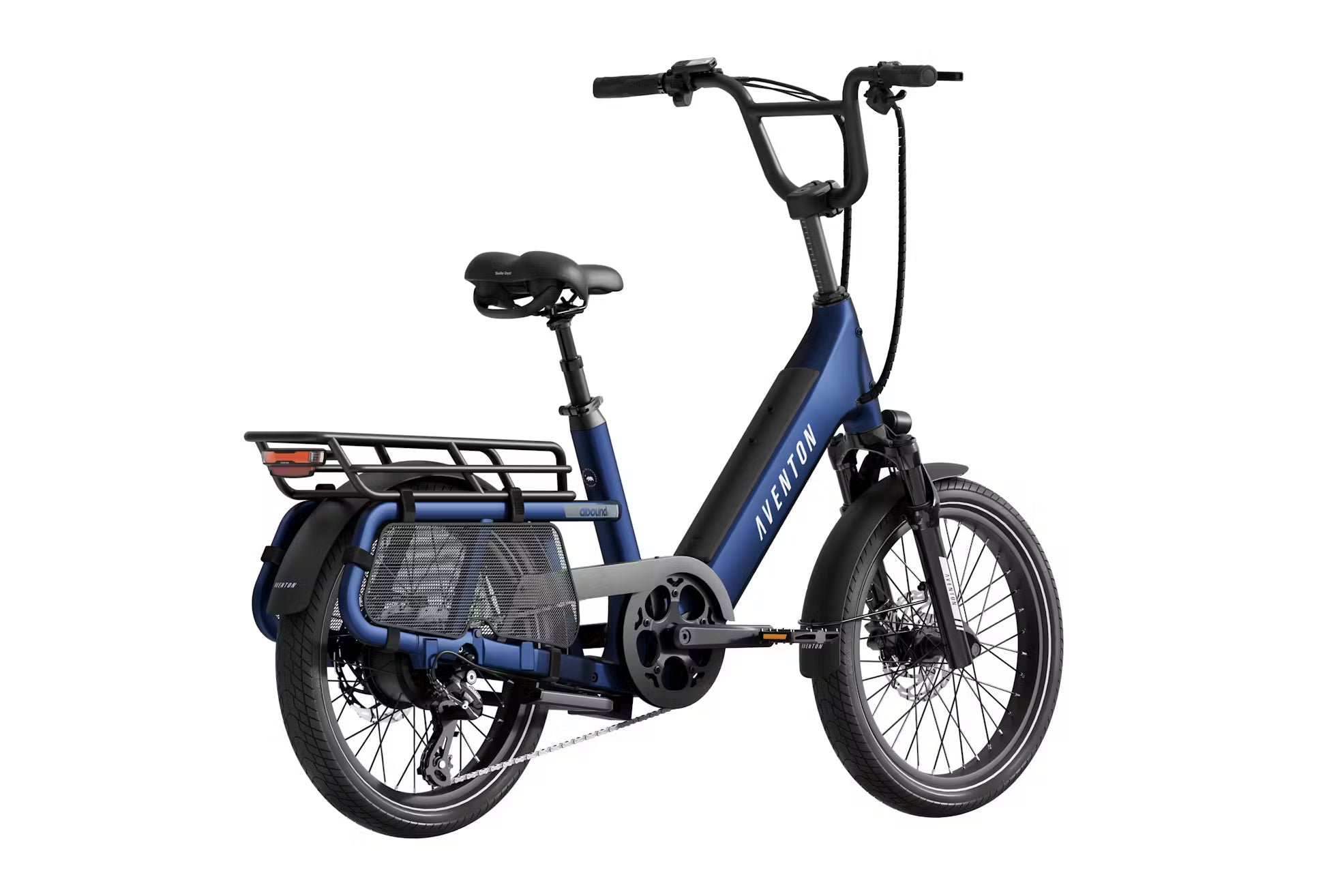

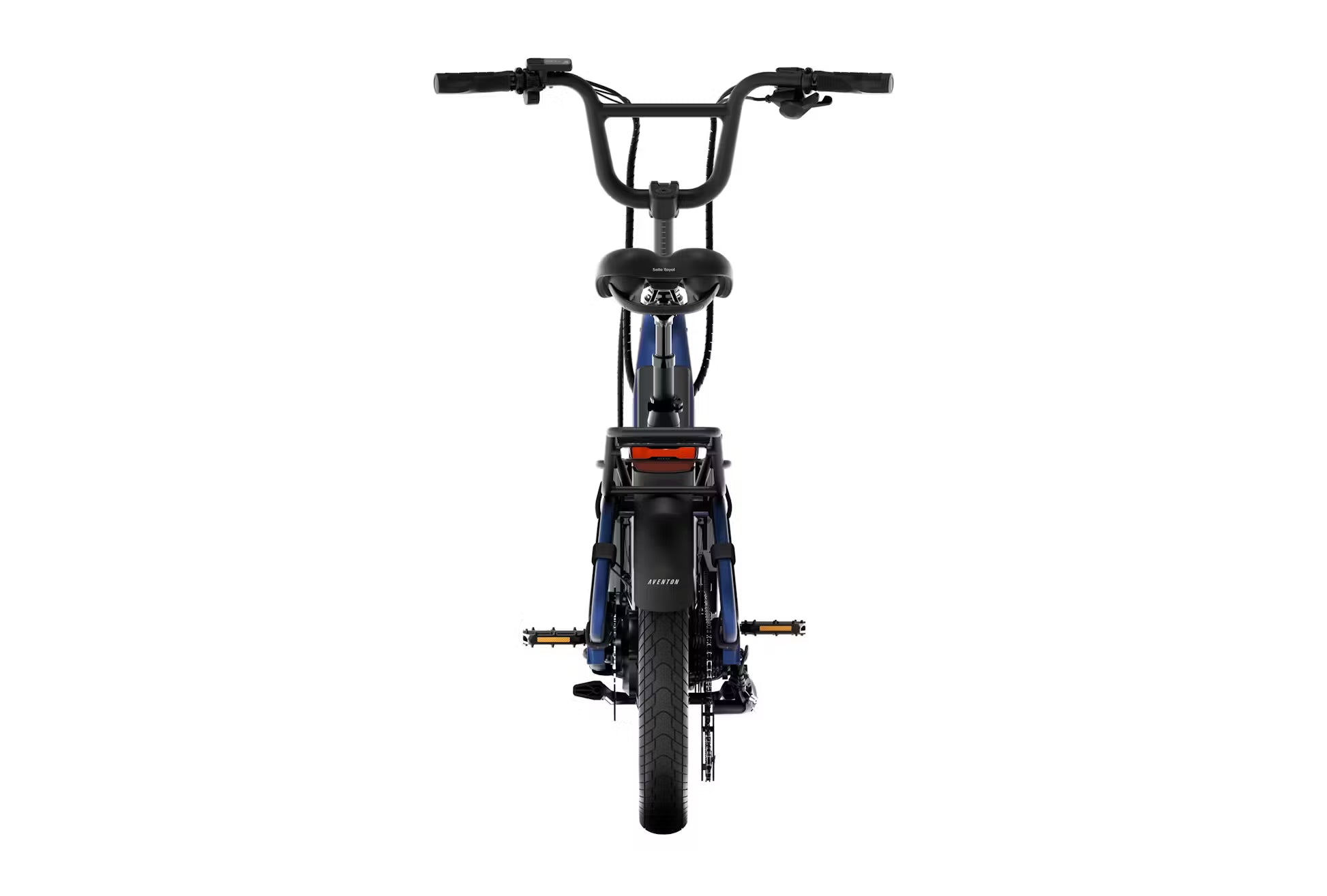

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security and GPS† features give you total peace of mind.
Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is yo
ur go-to for dominating the road.
It’s SRsly fun.
The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
| Model | Abound SR Ebike |
|---|---|
| Weight | 80 lbs |
| Total Weight Limit | 440 lbs |
| Rider Height | 4'11" - 6'3" |
| Ebike Class | Class 2 Ebike |
| Ideal Use | Cargo & Utility |
| Pedal Assist | 3 Levels (with Ride Tune Customization) |
| Safety Certifications | UL and TUV Safety Certified UL 2849 |
| Range | Up to 60 miles |
| Folding | No |
| Battery Safety Certifications | Certified to UL 2271 |
| Carry Capacity | Carry A Single Passenger |
| Water Resistance | Bike - IPX5 // Components - IPX6 |
| Frameset | |
| Fork | Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions |
| Frame Style | Step-Through |
| Frame | 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle |
| Wheelset | |
| Tires | 20 x 3.0 urban tire with reflective sidewalls |
| Wheels | 20-inch, 12-gauge, 36-hole, double-wall aluminum, black |
| Ebike System | |
| Motor Torque | 80Nm |
| ECU | Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities |

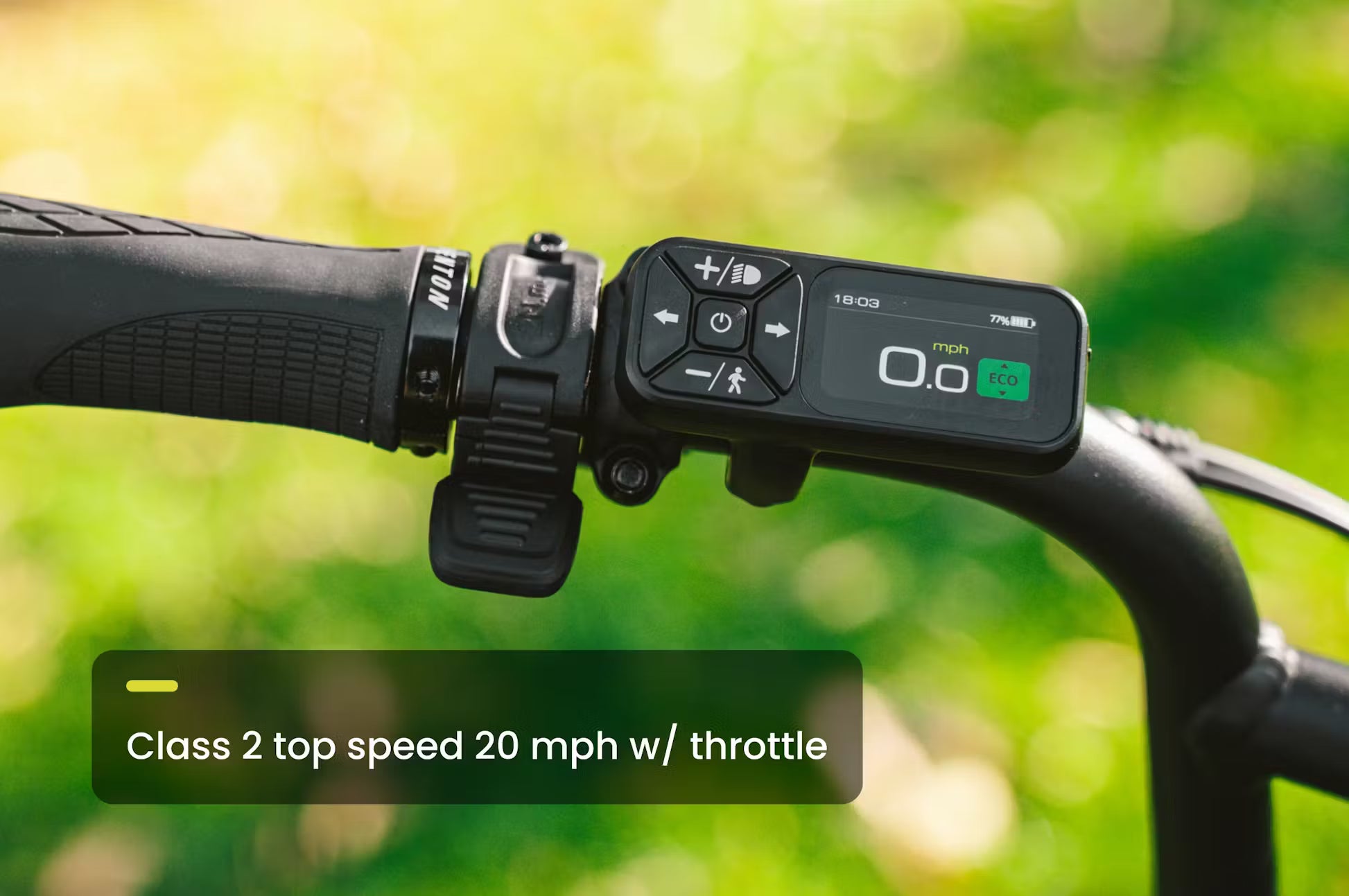

| Throttle | Aventon LH Handlebar Mounted |
| Sensors | Double Sided Bottom Bracket Torque Sensor |
| Charger | Aventon 4A 42V |
| Display | Aventon BC147 |
| Speed | Class 2 |
| Battery | Aventon 36V, 20Ah, 733Wh, LG 21700 cells |

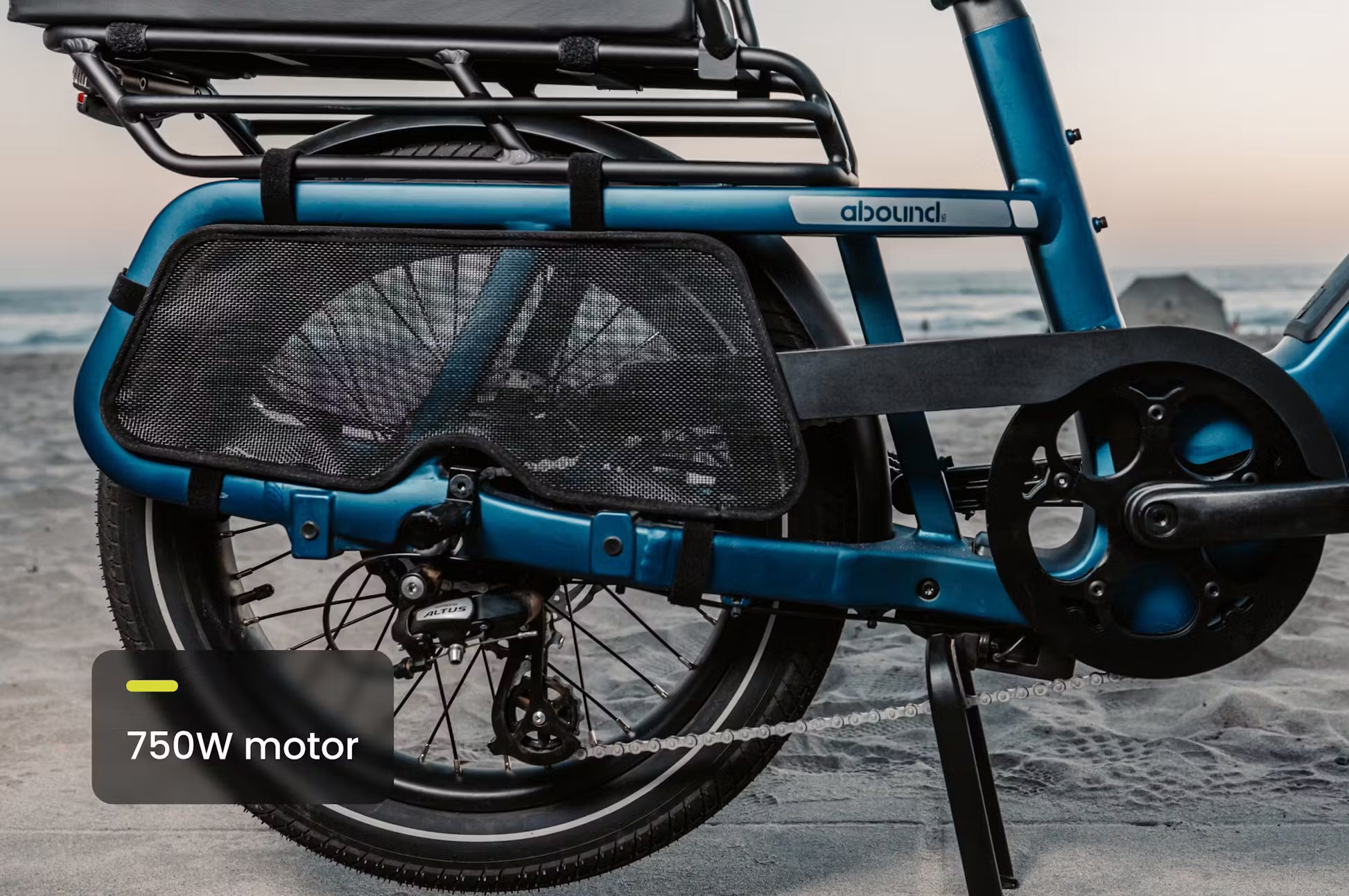

| Motor | Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak) |
| Brakes | |
| Rear Brake Rotor | Tektro 203mm 6 bolt |
| Front Brake | Tektro HD-E3520 hydraulic disc brakes |
| Rear Brake | Tektro HD-E3520 hydraulic disc brakes |
| Front Brake Rotor | Tektro 180mm 6 bolt |
| Drivetrain | |
| Chain | 122 Link, 8 Speed |
| Chainring | 52 tooth |
| Crank | 3pc, 165mm crank arm |
| Rear Derailleur | Shimano Altus RD-M310 8 Speed |
| Shift Lever | Shimano SL-M315-8R 8 Speed |
| Cassette | Shimano CS-HG200-8 8 speed Cassette, 12-32T |
| Pedals | 9/16" Composite Platform |
| Chainring BCD | 130 |
| Cockpit | |
| Saddle | Aventon by SelleRoyal |

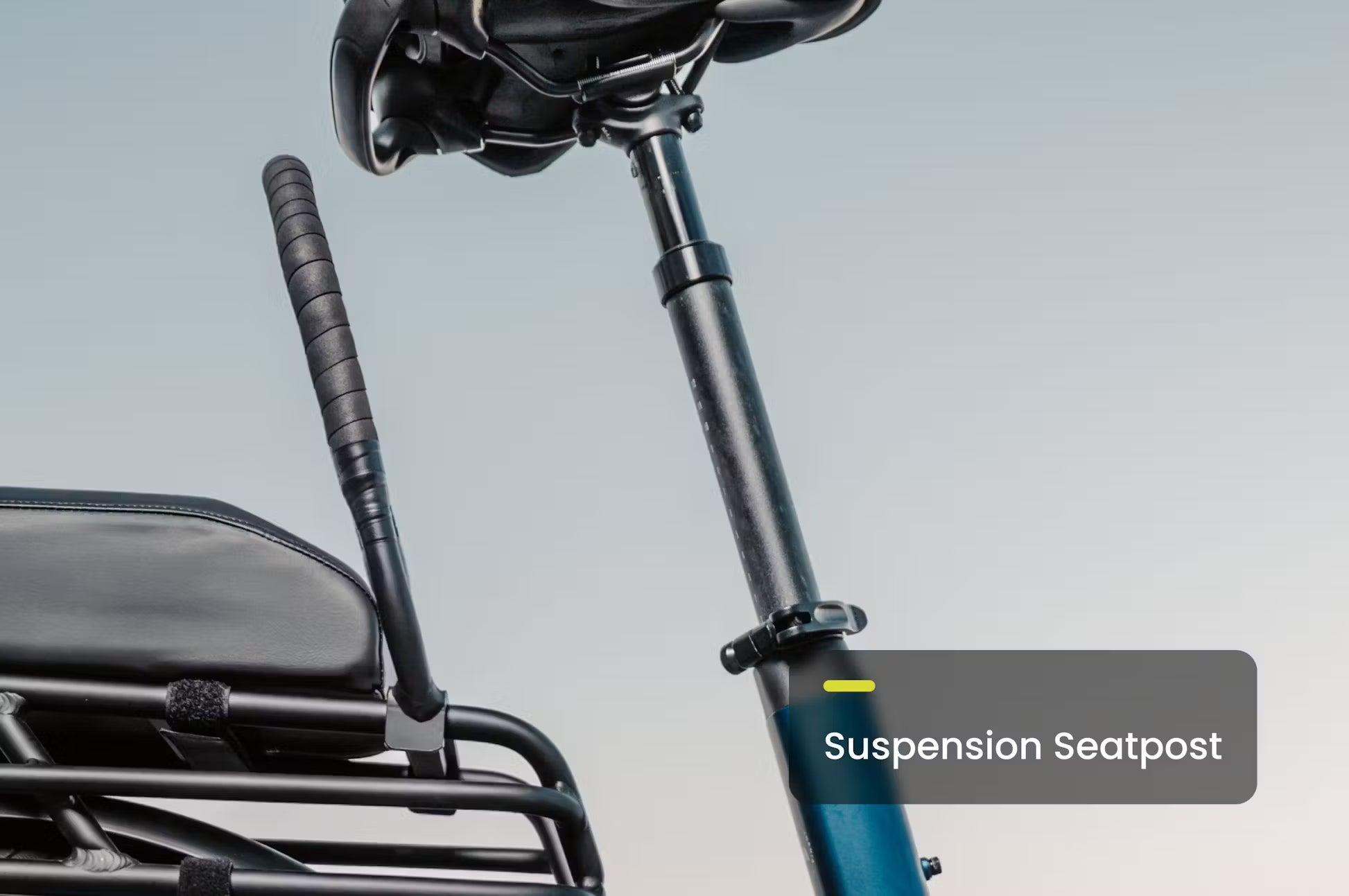

| Seatpost | 30.9mm Aventon Suspension Seatpost with 50mm travel |
| Handlebars | BMX Style, 31.8mm bar clamp, 680mm width |

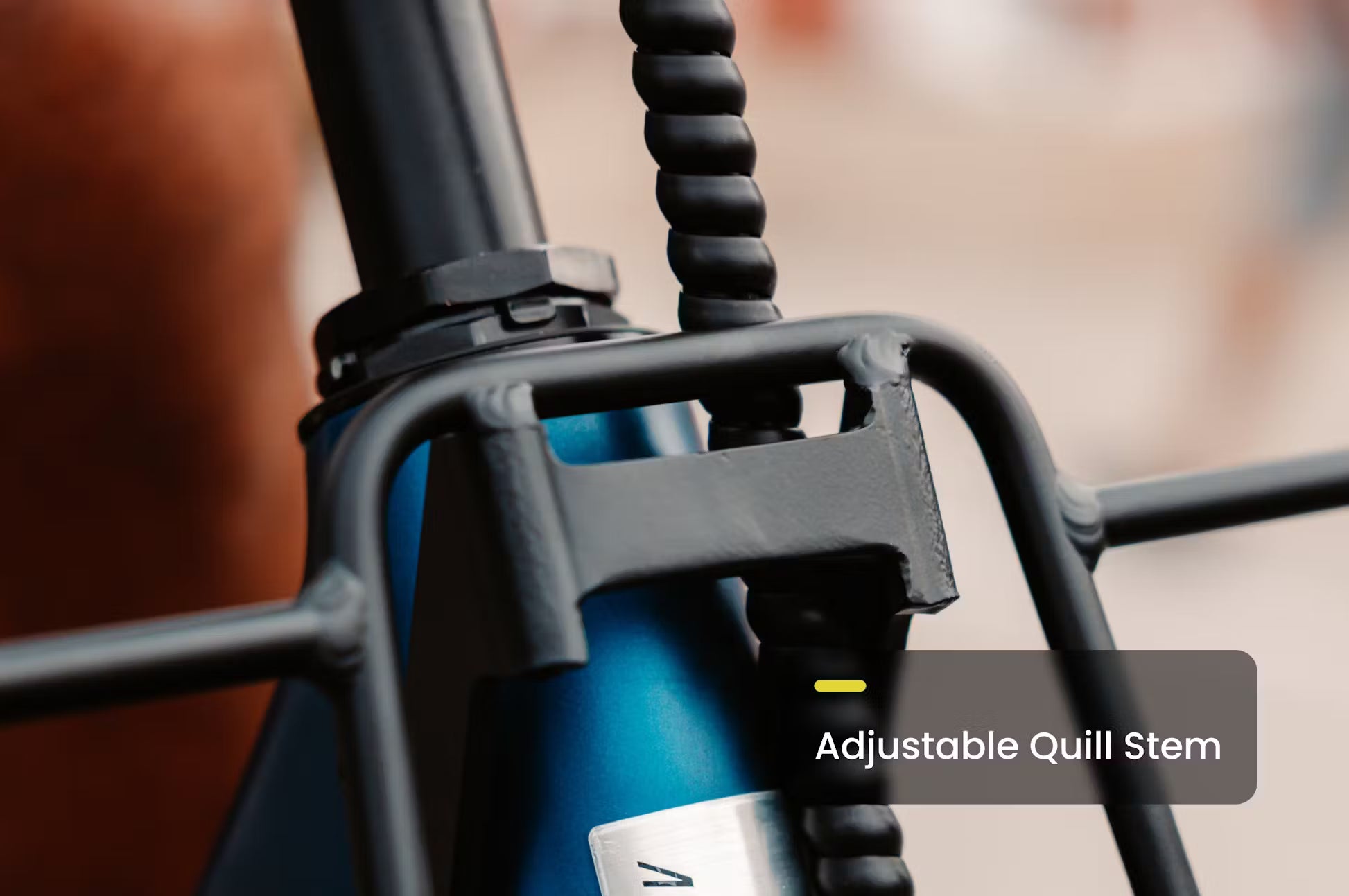

| Stem | Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment |
| Seat Clamp | 34.9mm Quick Release |
| Grips | Lock-on ergonomic |
| Included Accessories | |
| Rear Rack | Included |
| Kickstand | Included: E-lock |
| Rear Wheel Mesh Guards | Included |
| Rear Rack Weight Limit | 143 lbs |
With the Aventon ACU techonogy on all thier latest models, Aventon has added security features like GPS tracking, unusual activity detection, rear wheel / kickstand lock, and much more. Aventon bikes give you peace of mind knowing your bike is always secure so you can focus solely on the fun ahead.
Cool Tech
The Aventon Control Unit (ACU) is a powerful onboard technology that sets a new standard for what you can expect from your ebike. With a variety of exciting features and capabilities, the ACU seamlessly integrates technology to offer more control and peace of mind.The development of ACU is the result of years of research, feedback from riders, and a passion for creating smarter, more intuitive solutions. It’s a leap forward in how we ride, protect, and maximize the ability of our bikes. Welcome to the era of Smart Bike.
Keyless Battery - A keyless battery system eliminates the need to keep track of one more set of keys in your life. Batteries can be removed via the bike display or through the Aventon app.
Geofencing - Geofencing gives riders ultimate control over where their bike is ridden, or not ridden. Through the Aventon app, riders can create allowable and restricted zones for their bike. The ACU will eliminate throttle and pedal assist power as soon as the bike enters a restricted area or leaves an allowable area.
4G Connection - 4G Connectivity provides riders with the ability to control their bike and its functionality remotely, from wherever they may be.
Lock it Down
Startup Password - Riders can create a password that must be entered on the display in order to operate the bike.I
Integrated Bike Lock - Easily engage the integrated lock through the bike display or Aventon app for added peace of mind that your bike is secure.
Unusual Activity Detection - The ACU is able to detect unusual activity and alert riders if their bike is moved without authorization. Riders can opt to activate an onboard alarm when their bike is moved, as well as receive notifications of unusual activity through the Aventon app.
