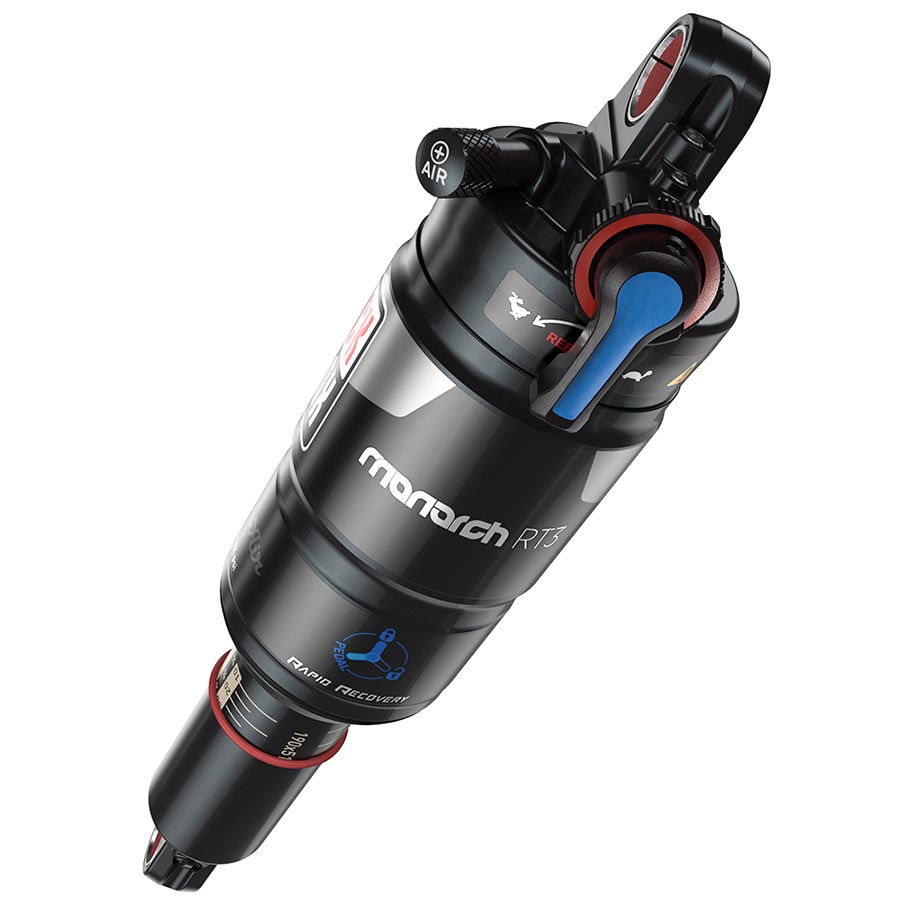

RockShox Monarch RT3 Rear Shock 7.25x1.90" 184x48mm 2014-2015 Trek Fuel EX 29" D1

The Monarch's lightweight design not only delivers silky smooth travel but thanks to a redesigned Solo Air spring with updated damping controls it also delivers a spring rate you’d generally only get from a much heavier coil shock. So you get a durable fully adjustable shock capable of smoothing out the most aggressive trails while simultaneously saving you weight for epic cross country riding. The Monarch RT3 features external rebound and 3-Position compression adjustment (Open/Pedal/Lock).

Intended Use: XC Trail

RT3 shocks feature external rebound and 3-Position compression adjustment (Open/Pedal/Lock) Solo Air lets you add air to your shock through a single Schrader valve filling both the positive and negative air spring chambers simultaneously. This gives you a plush predictable ride you can set up in seconds with the lightest weight air spring on the market

Rapid Recovery allows the shock to recovery faster between consecutive bumps letting the wheel track the ground with greater precision

Fast Black hard anodized forged aluminum body with sag gradients

10mm 7075 aluminum shaft

Stroke (mm)	48
Stroke (ins)	1.9
Metric	No
Lockout Switch	Shock Mounted Switch
Weight	215
Eyelet Diameter (mm)	12.7
External Adjustments	Rebound Damping
Positive Spring	Air
Eye to eye length (mm)	184
Eye to eye length (ins)	7.25
Eye To Eye Length	184Mm
Stroke	48Mm
Spring Type	Solo Air
