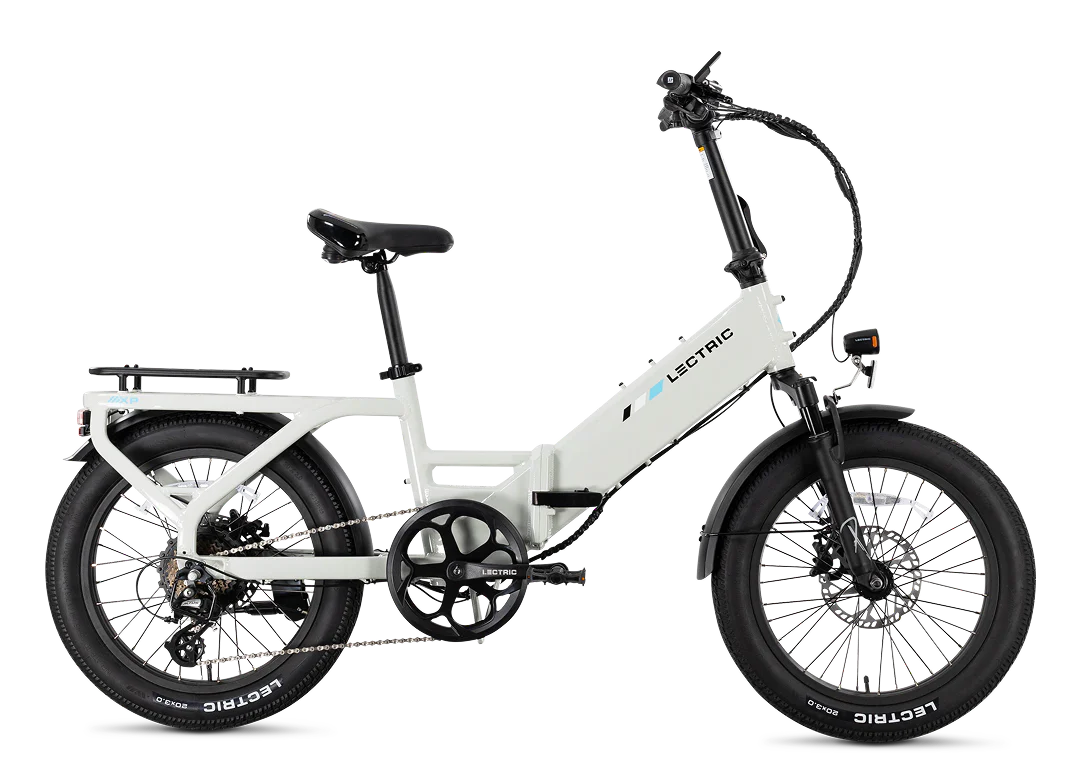

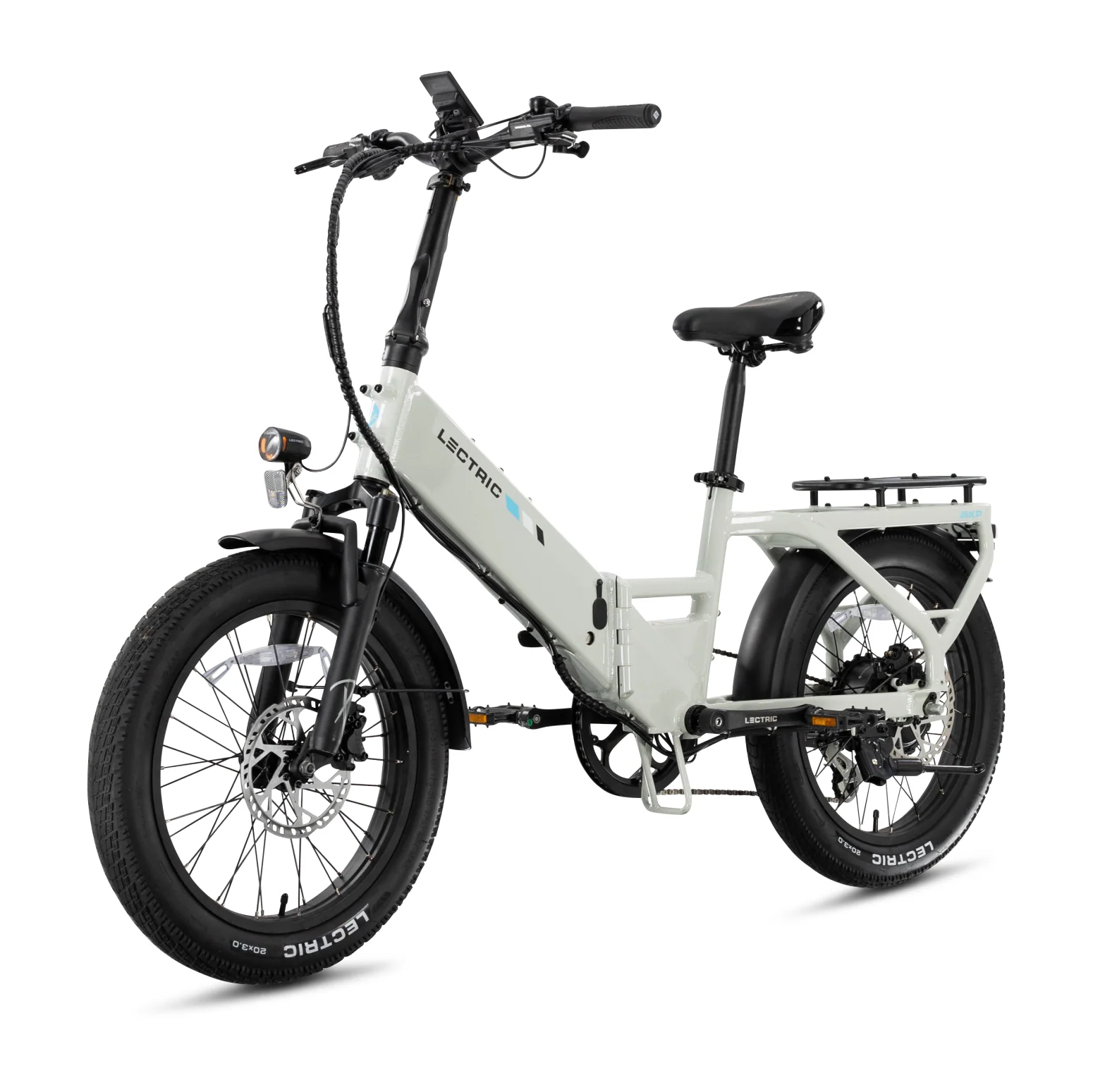

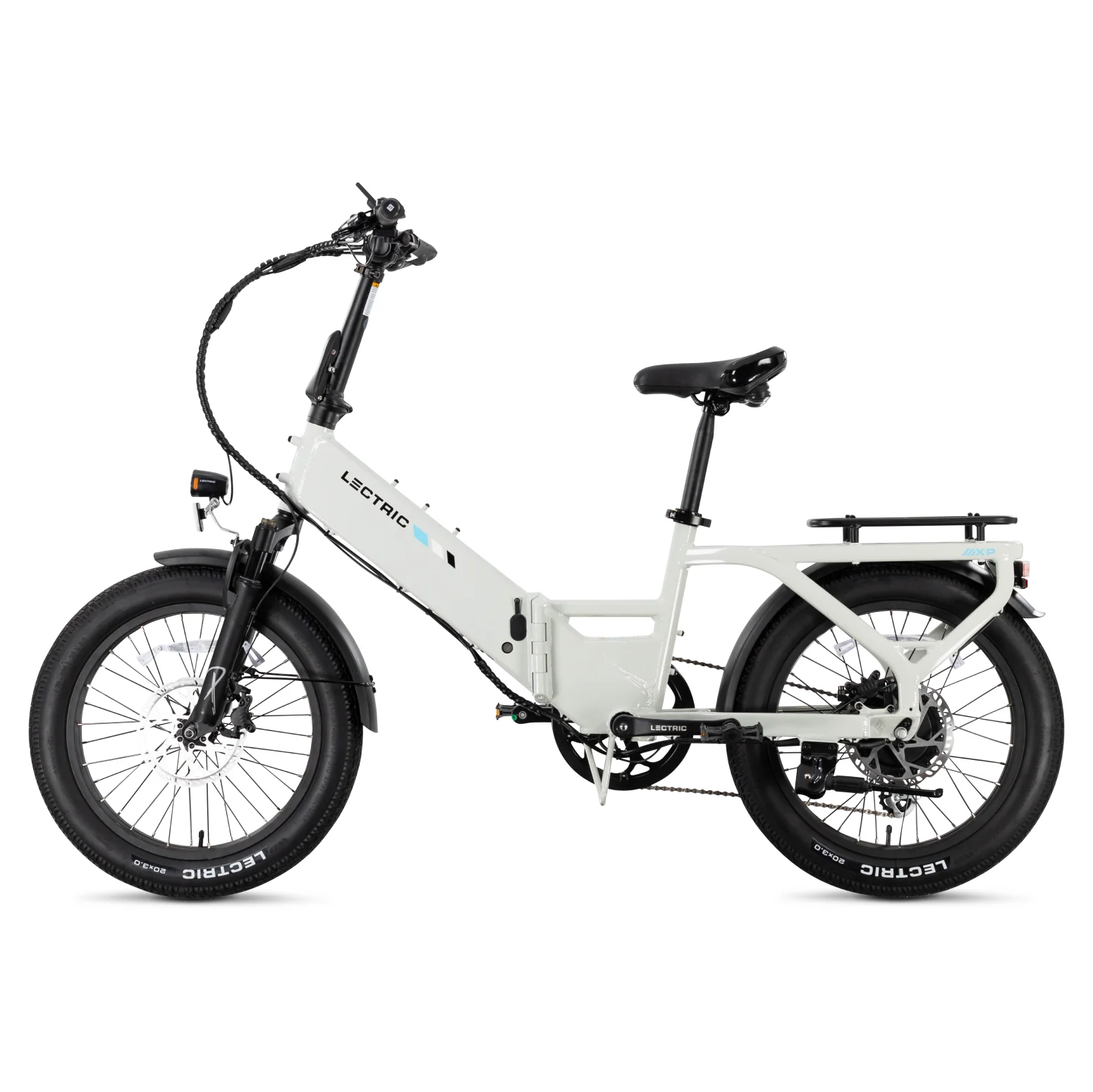

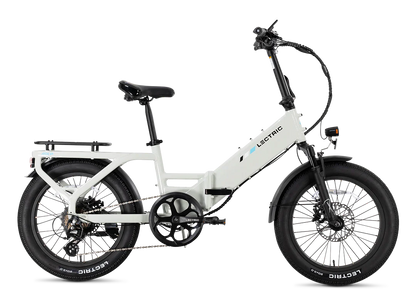

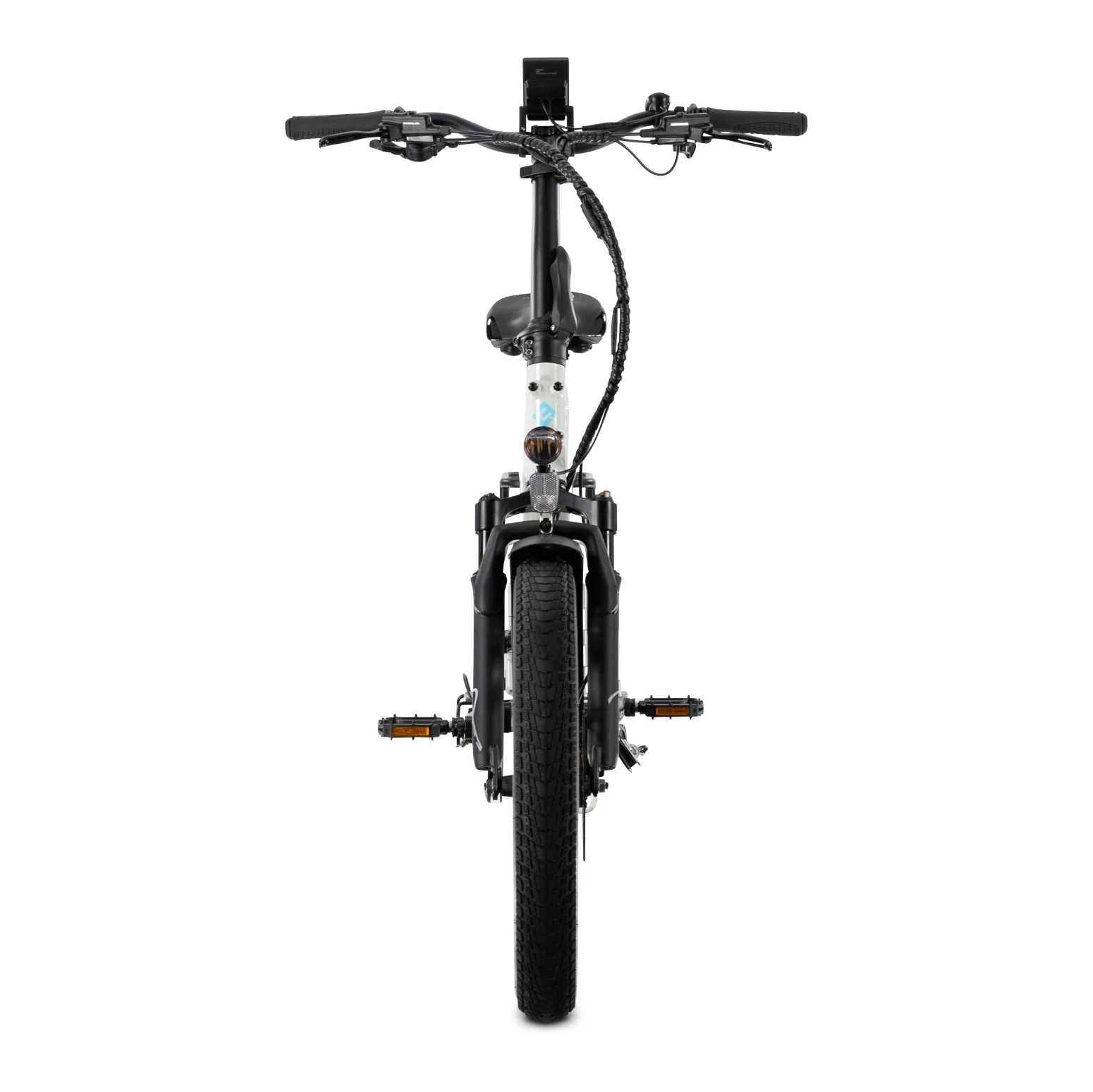

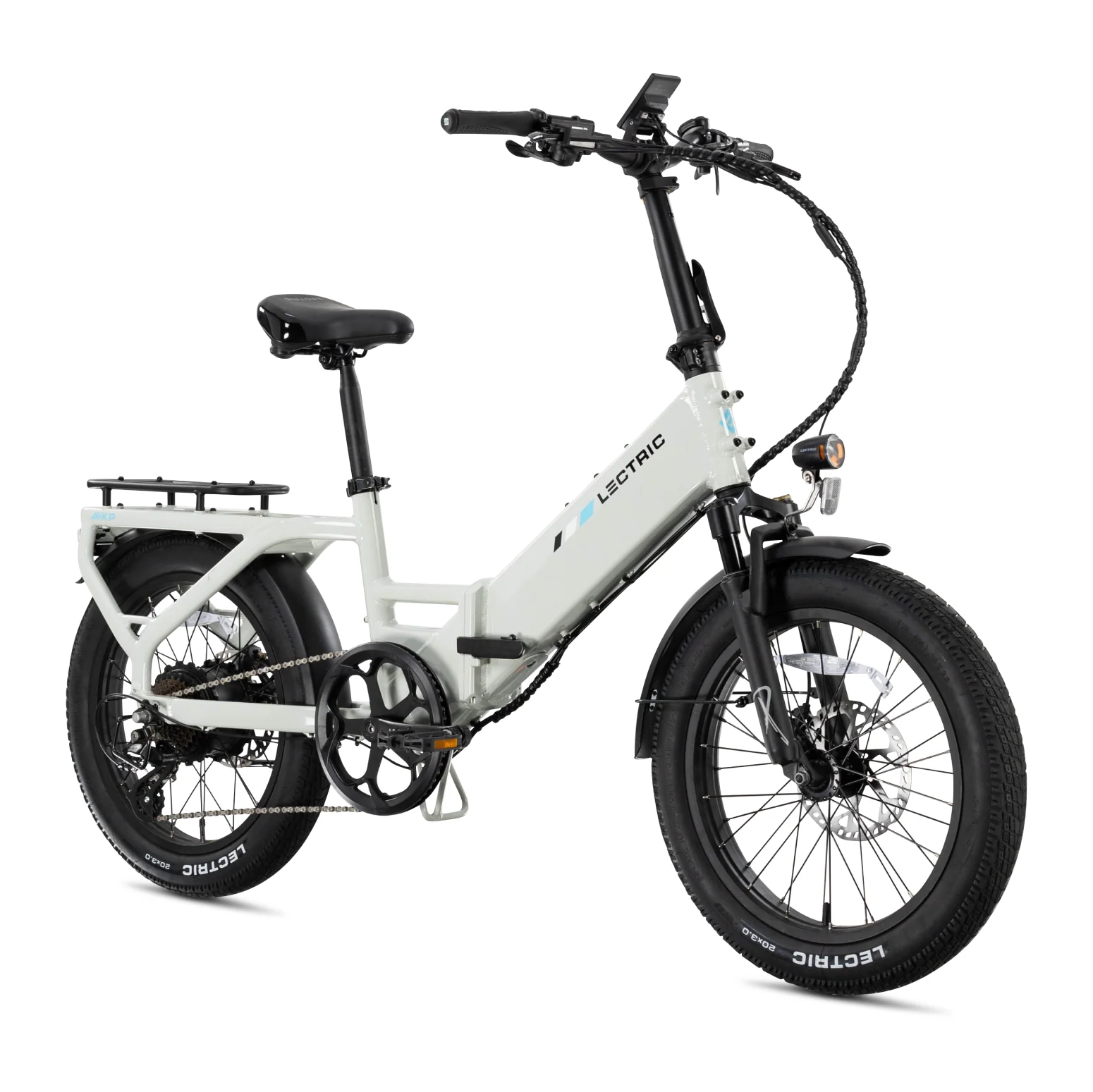

Lectric XP4 - 500W Step Thru

5 Riding Modes

Five riding modes deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.* New simplified labels, including Eco, Tour, Sport, Sport+, & Turbo, allow riders to choose their riding experience.

Thumb Throttle

An ergonomic below-the-bar trigger throttle on the left-hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.

Stealth M24 Motor

A 500W rear hub motor (1092W peak) with 55Nm of torque supplies power and speed quicker than ever before. Stealth M24 technology delivers a quieter motor experience without sacrificing power.

Battery

An integrated & removable 48V, 10.4Ah (500Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 50 miles on a single charge.** The XP4 is also certified to UL 2849.† Removing the battery from the frame is a breeze with the side-facing key port location.

New: Keyless Riding

Turn your bike on and off with the push of a button, and start riding without having the key in the battery! Keys are needed to remove the battery from the bike frame only. We’ve listened to our loyal riders, and you can now ride key-free!

Rear Rack

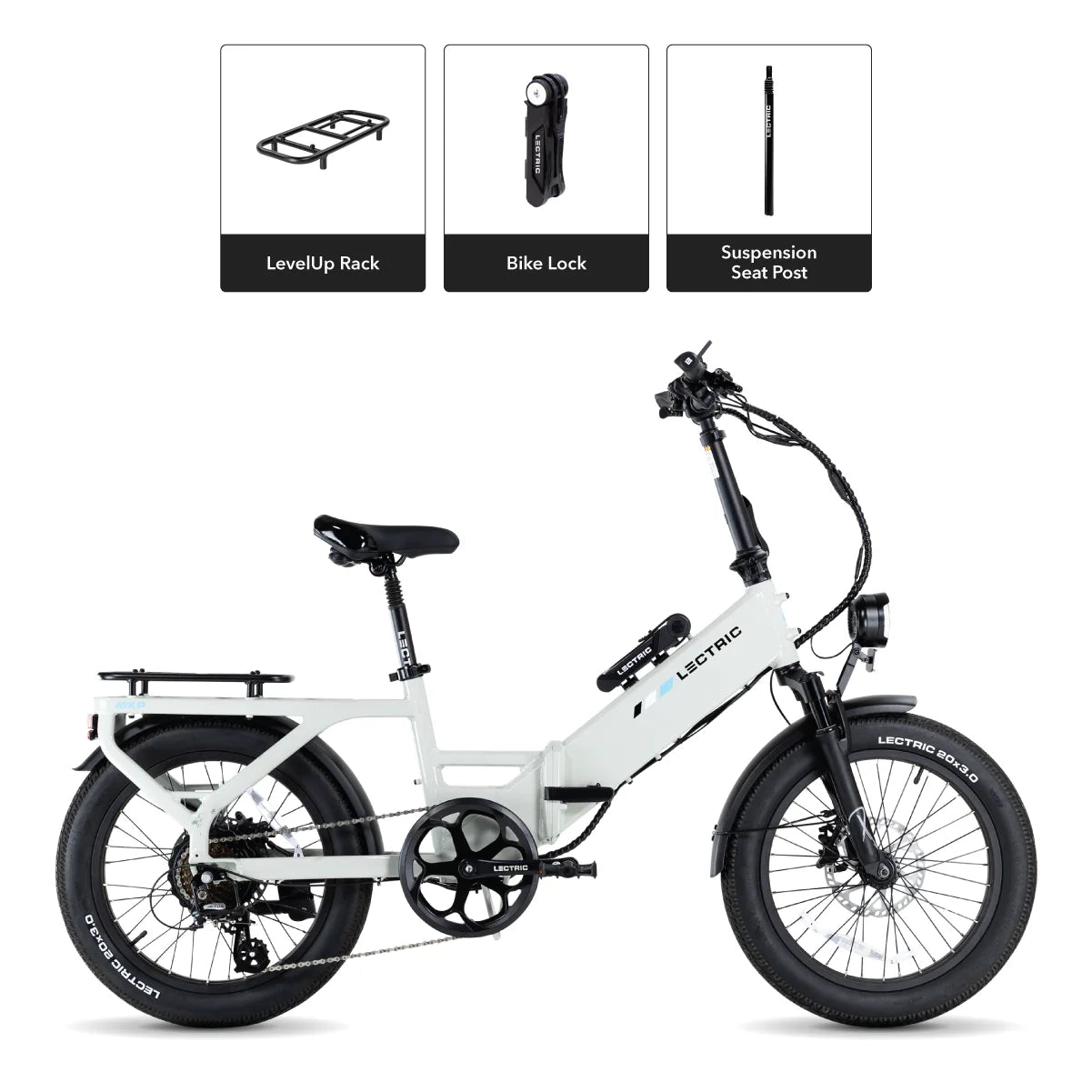

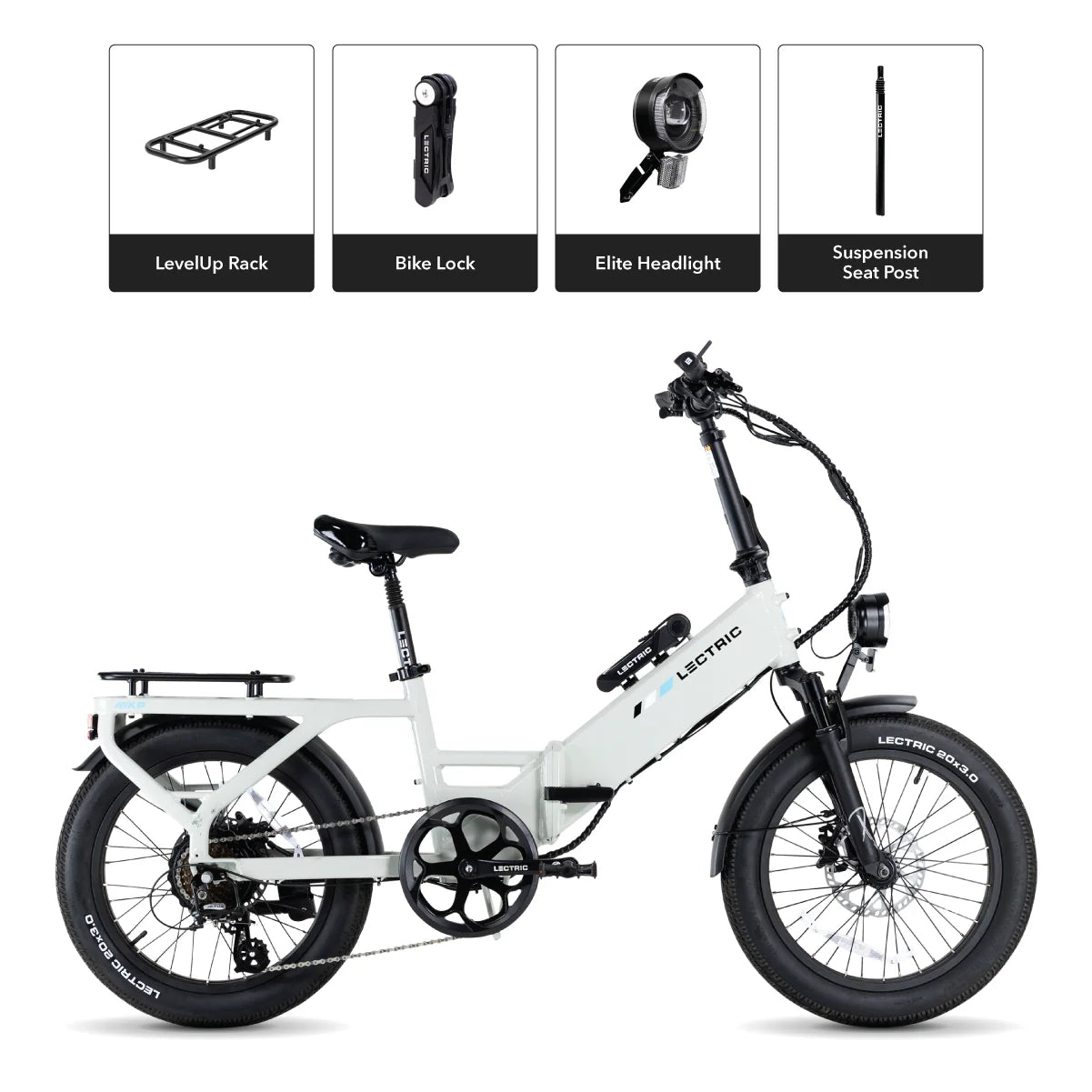

A new rear rack design integrated into the bike frame holds up to 150lbs and features bosses for mounting various accessory combinations. Add a LevelUp Rack (sold separately) on top of the rack to unlock even more accessory combinations!

Co-Pilot Capable

The LevelUp Rack (sold separately) can be added to the integrated rear rack and has a built-in mounting window to easily install children's seats like the Thule Maxx Yepp Seat. If they have outgrown a standard child seat, our Buddy Seat (sold separately) contains an open padded seat, handlebars, and foot pegs that allow you to bring them along for the ride!***

TFT LCD Display

A custom color TFT display featuring a detachable mount and a USB-C port. You’ll find trip, battery, & power intelligence on the go. New intuitive drop-down menus make navigating the settings on your eBike easy to understand & allow users to customize their ride settings based on preference. The IP-X5-rated display ensures greater water resistance.

Tires—with Slime!

Puncture-resistant 20” x 3” tires are perfect for mixed terrains and make for a smoother ride. The new custom tread pattern has less rolling resistance for better power efficiency and delivers an ultra-quiet experience. Slime is installed to prevent flat tires—at no additional cost.

Torque Sensor

Our proprietary in-house-designed torque sensor programming will give you smoother power distribution and a better riding experience. It is designed to manage power output based on the rider’s pedaling effort. With this programming experience, riders can reach higher speeds easily and with more control than ever before.

Drivetrain

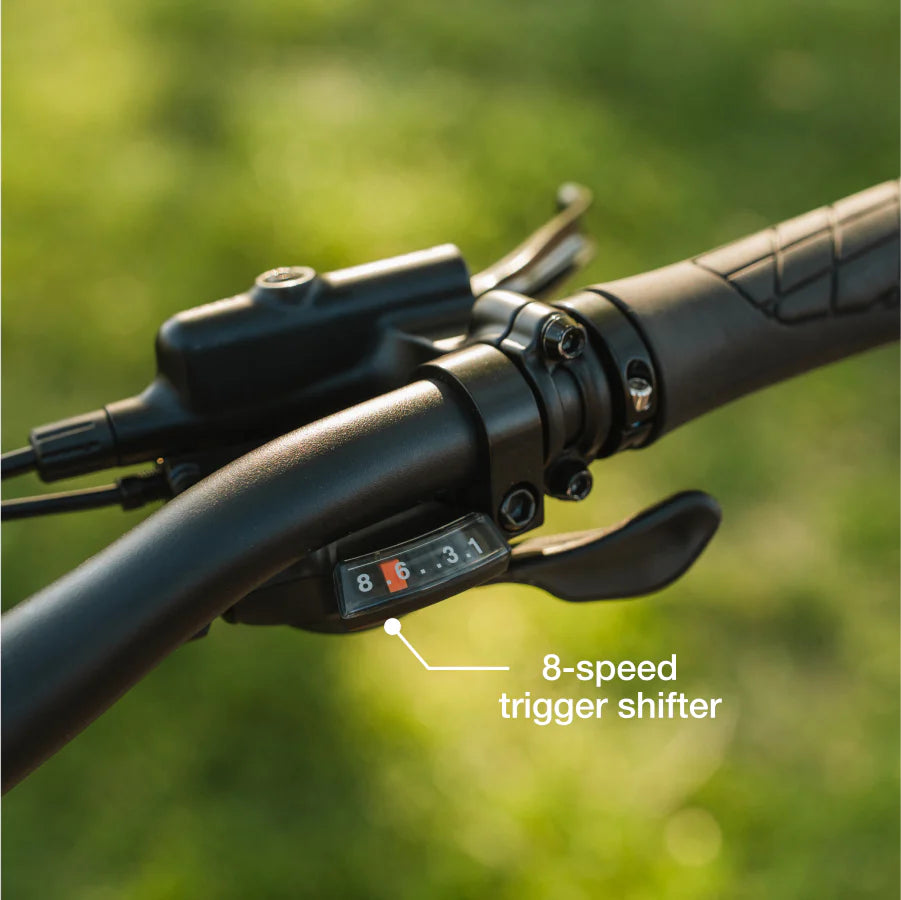

An 11-32 tooth, 8-speed freewheel paired with a Shimano Altus derailleur and a below-the-bar trigger shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.

Crankset

Forged aluminum, 56-tooth custom chainring is the perfect ratio for effortless 20-inch wheel pedaling.

Chain

A KMC Z8 steel chain with inner plate chamfering offers consistent tension and smooth transitions between shifting for a secure performance throughout your ride.

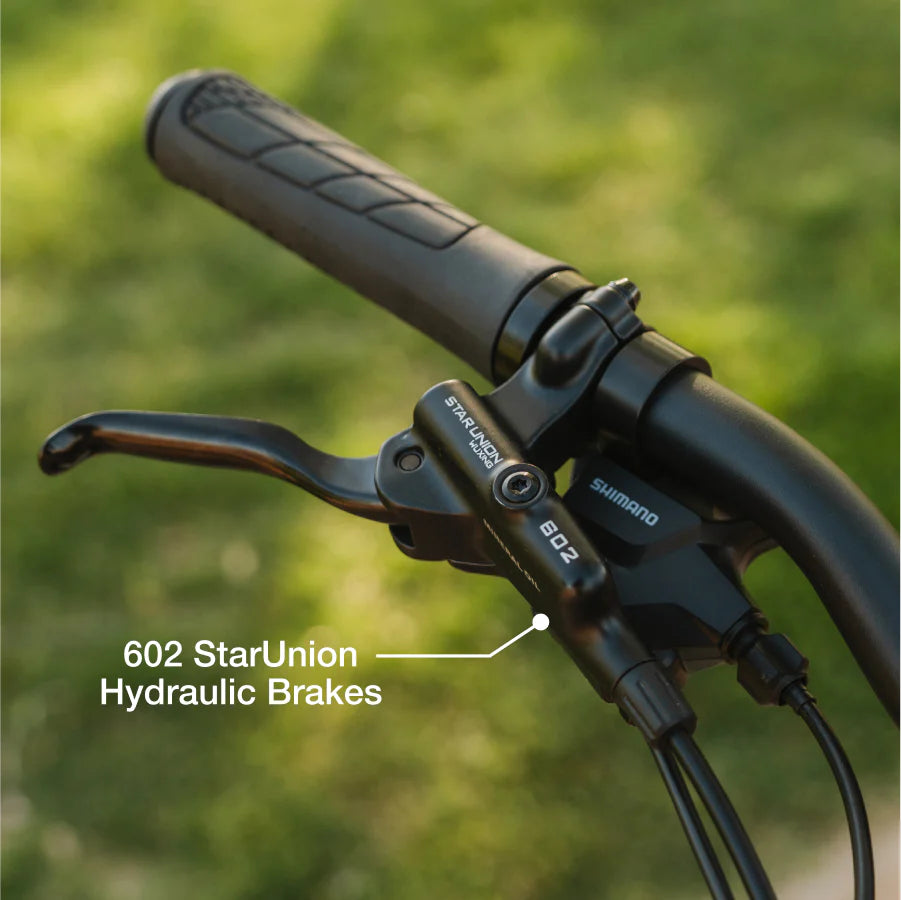

602 Hydraulic Brakes

Get ultimate stopping power with 602 hydraulic brakes paired with 180mm rotors (2.3mm thick), making it as easy to stop as it is to go, whether in wet or dry conditions. Paired with ergonomically designed aluminum brake levers for durability.

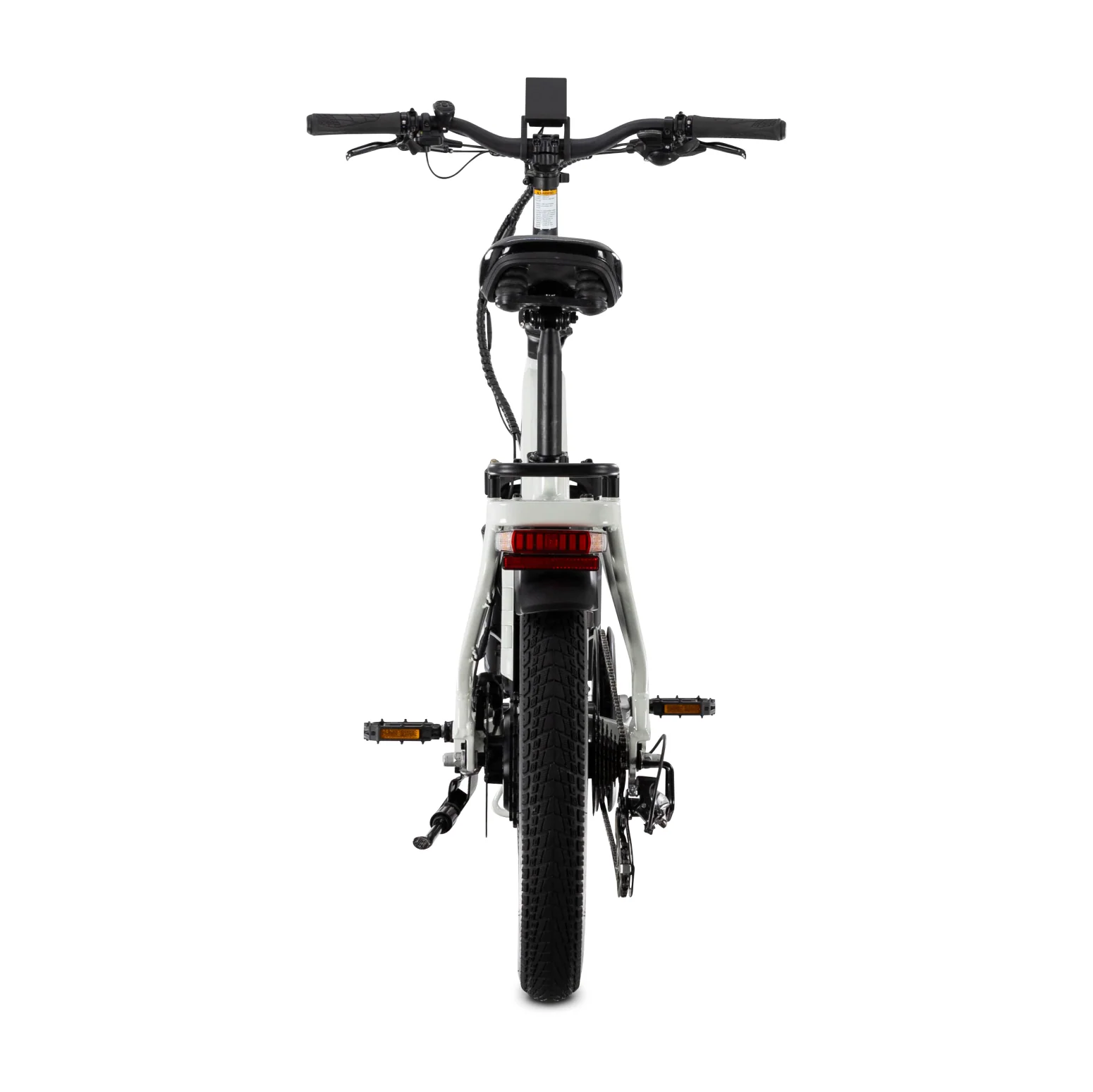

Safety Lights

An integrated safety system, featuring a new bright 90-lumen headlamp with side amber lights and a brake-activated rear light powered by the internal battery, allows you to be seen at any time of day.

Turn Signals

Alert drivers, riders, and people nearby with our turn signals. Simply use the left or right arrows on the button pad to turn on the blinkers on either side of the rear light.

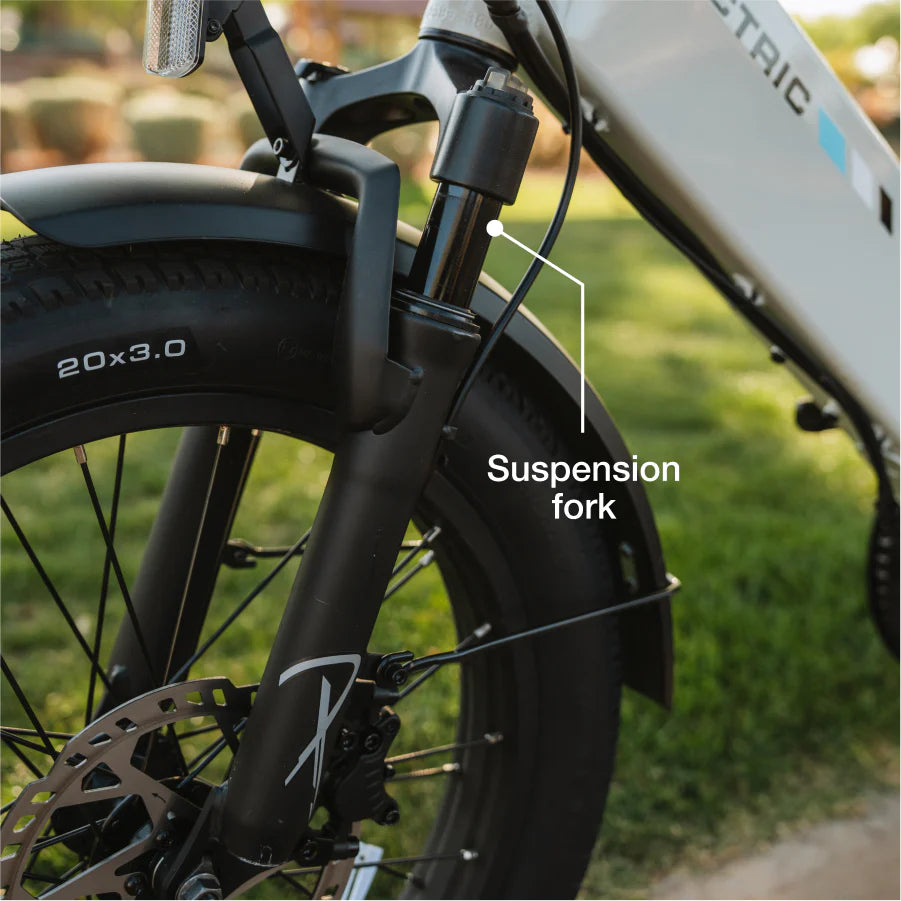

Suspension Fork

The front fork provides shock absorption for a smooth and comfortable ride. Adjust the tension or lock it out to tailor each ride to your preference based on payload capacity and weight distribution.

Folding Kickstand

A heavy-duty steel side-sweeping kickstand located near the chainstay keeps the eBike upright.

Fenders

Polypropylene fenders with a flared tail protect you and your ride from debris. The flexible material is damage-resistant and helps ensure long-term durability.

Quick-Release Pedals

Custom-designed 6000 Series Aluminum quick-release pedals with splined inserts allow for easy, tool-free removal and installation. The new shape of the pedals improves foot traction for an optimal experience.

Lock-on Grips

Full-length ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.

Saddle

A custom-designed saddle complements a sporty look while adding comfort so you can ride longer.

Adjustable Handlebar Stem

Ride longer and more comfortably in an upright cruising position with our new zero-degree stem, which shortens the handlebar reach. Plus, telescoping functionality allows riders to reach a wide range of heights while maintaining comfort and stability.

Telescoping Seat Post

Customize the bike to your perfect size by adjusting the seat post height; simply open the quick-release collar and slide the post to your preferred height and lock it in place by closing the collar.

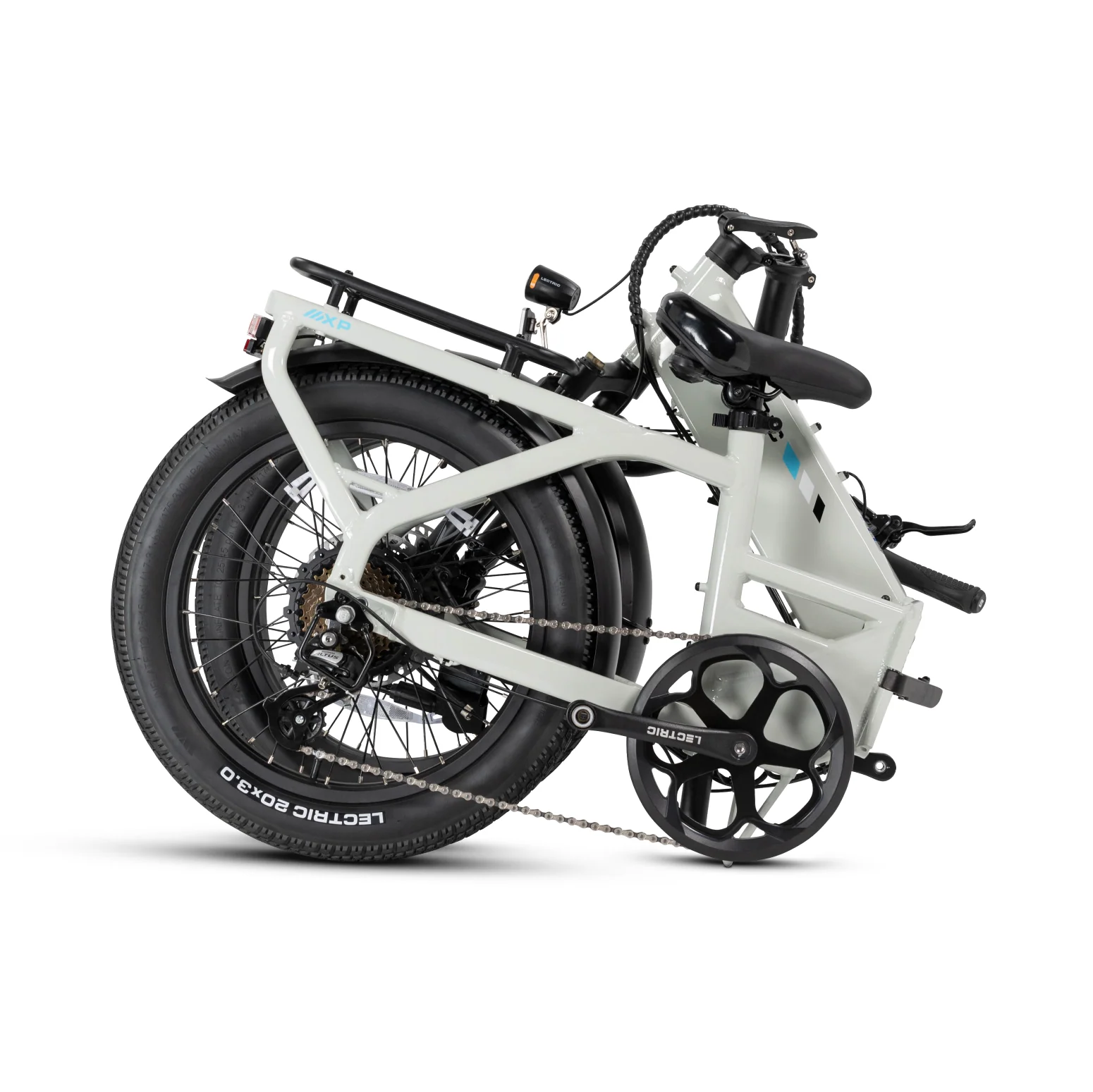

Fully Foldable

A foldable hinge at both the handlebar stem and frame guarantees your ride will fit into virtually any compact space. Remove the pedals and the seat post in seconds for easy and lightweight transport.

Weight

Total bike weight is 62lbs without the battery installed. The XP4 battery weighs 7lbs.

Easy Charging

An auxiliary charging port near the bottom bracket provides riders with the option to charge the eBike without removing the battery. The XP4 comes standard with a 2amp charger for 4-6 hour charging, but a 5amp Fast Charger can be purchased separately, which can charge the standard battery in as little as 2 hours.

Fully Redesigned Frame

The newly designed, more aesthetic XP4 frame is lightweight and features sturdy 6000 series aluminum with mounting points for various accessory combinations.

Motor Controller

20amp internal controller is IP-X5 rated and potted for weatherproofing and thermal management.

Green Packaging

Packaging components are biodegradable and easily recyclable.

Color

Stratus White

Tested for Durability

Our eBikes are built with industry-leading safety certifications so you can have peace of mind riding in almost any condition. A US-based bicycle testing lab put the XP4 through the rigorous ISO 4210 standard testing process.

Safety Certified

We ensure that the electrical and battery components are manufactured to the industry standard. The Lectric XP4 is certified to UL 2849. Additionally, the XP4's lithium-ion battery is certified to UL 2271.
